Frameless door
Adjustable glass shelves

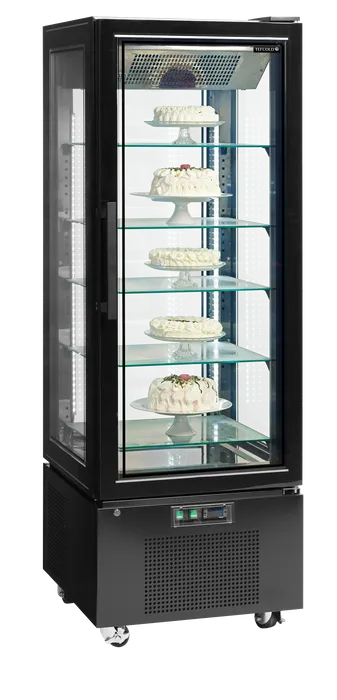

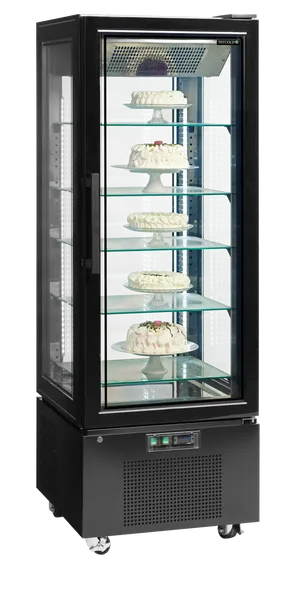

Glass Display Freezer
UPD400F
Product.ItemNumber: 34003
Product.Brand: TEFCOLD
- Fully automatic
- Fan assisted cooling
- Adjustable glass shelves
- LED interior light
- Double glazed glass to improve insulation
- Heated glass to help prevent condensation
- Replaceable door gasket
- Castors, 2 lockable
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight225 / 203 kg
- Total Display Area1.95 m²
- Temperature Range-25 to -18 °C
- Climate Class4
- Gross / Net Volume364 / 248 l
Design and Material
- Exterior FinishBlack/Glass
- Interior FinishStainless steel / Glass
- Door Number & Type1 hinged heated glass door
- Max load on Shelves150 kg/m²
- Shelf Dimensions530 x 417
- Shelves Number & Type5 glass shelves + base
- Castors4 wheels, 2 with brake
- Interior Light4 x Vertically LED
Cooling and Functions
- Type of ControllerElectronic
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge150 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No543903
- Max Ambient30°C 55% RH
- Annual Energy Consumption8582 kWh/year
- Energy Consumption23.51 kWh/24h
- EEI47.4 %
- Power13 Amp
- Input Power1000 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level42 dB(A)
Dimensions
- 40ft Container Load 48 pcs
- GTIN / EAN5708181994501
- Product Group - Delivery servicesGroup 2
- External Dimension (WxDxH)650 x 650 x 1950 mm
- Internal Dimension (WxDxH)588 x 516 x 1200 mm
- Packed Dimension (WxDxH)720 x 720 x 2030 mm
ProductDetail.DownloadsHeader
ProductDetail.SparePartsHeader
- 02
Product.ItemNumber 32566Brake Wheel - 03
Product.ItemNumber 32567Wheel - 04
Product.ItemNumber 32568Door Hinge - 05
Product.ItemNumber 12826Down Hinge Axis Jacket - 06
Product.ItemNumber 32569Front Panel - 07
Product.ItemNumber 32570Thermostat - 08
Product.ItemNumber 13754Main Switch - 09
Product.ItemNumber 32480Thermostat Cover - 10
Product.ItemNumber 32571Juction Box - 11
Product.ItemNumber 32573Left Panel - 12
Product.ItemNumber 32572Transformer - 13
Product.ItemNumber 15724Filter Drier 25 G - 14
Product.ItemNumber 32575Solenoid Valve - 15
Product.ItemNumber 32576Compressor SC21CNX.2 - 16
Product.ItemNumber 32577Condenser - 17
Product.ItemNumber 32578Condenser Fan Blade - 18
Product.ItemNumber 11568Water Box - 19
Product.ItemNumber 32579Condenser Fan Grill - 20Product.ItemNumber 32582Frame Heater Cover L
- 21Product.ItemNumber 32583Frame Heater Cover H
- 24
Product.ItemNumber 32586Glass Shelf - 25
Product.ItemNumber 32587Shelf Clip, Front Left and Back Right - 26
Product.ItemNumber 32588Shelf Clip, Front Right and Back Left - 29
Product.ItemNumber 32591Led Lamp 6500 K - 32Product.ItemNumber 32595Left Glass
- 33Product.ItemNumber 32596Back Glass Heated
- 34Product.ItemNumber 32597Right Glass
- 35Product.ItemNumber 32633Glass Door
- 36
Product.ItemNumber 32599Door Handle - 37Product.ItemNumber 32600Door Gasket
- 38Product.ItemNumber 32601Top
- 39Product.ItemNumber 32602Plastic Cap
- 40
Product.ItemNumber 32603Up Hinge Cover - 41
Product.ItemNumber 32604Door Hinge /Up Right - 44
Product.ItemNumber 32607Evaporator - 45
Product.ItemNumber 32608Circle Fan - 47
Product.ItemNumber 32610Circle Fan Cover - 48
Product.ItemNumber 32611Sensor Fixed Box - 50Product.ItemNumber 32614Foam
- 53
Product.ItemNumber 32618Door Switch - 54
Product.ItemNumber 10725Lock With Keys - 55
Product.ItemNumber 32620Right Pannel - 56
Product.ItemNumber 32621Back Panel - 57
Product.ItemNumber 32622Led Power Supply - 58
Product.ItemNumber 32613Water Pan Heater - 59
Product.ItemNumber 32616Drain Pipe Heater - 60Product.ItemNumber 32574Contactor
- 61Product.ItemNumber 32802Circle Fan
- 63Product.ItemNumber 32594Frame Heater
