Glass Door Display Freezer

UF50G Black

Item no.: 44339

  • Static cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Self-closing glass door
  • Heated glass to help prevent condensation
  • Replaceable door gasket
Energy arrow
Product Sheet
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    -24 to -12 °C
  • Climate Class
    4
  • Gross / Net Weight
    39 / 34 kg
  • Gross / Net Volume
    50 / 48 l
  • Total Display Area
    0.23 m²

Design and Material

  • Feet / Legs
    4 adjustable feet
  • Exterior Finish
    Black
  • Interior Finish
    White
  • Interior Light
    LED
  • Lock
  • Door Number & Type
    1 heated hinged glass door
  • Shelves Number & Type
    2 wire shelves white
  • Shelf Color
    White
  • Shelf Dimensions
    440 x 210 mm
  • Door Reversible
    No

Cooling and Functions

  • Type of Controller
    Mechanical
  • Type of Cooling
    Static
  • Type of Defrost
    Manual
  • Refrigerant
    R290
  • Refrigerant Charge
    45 g
  • Thermometer
    No

Power and Consumption

  • Energy Class
    C
  • Max Ambient
    30°C at 55% RH
  • Energy Consumption
    2.53 kWh/24h
  • Annual Energy Consumption
    923 kWh/year
  • Input Power
    154 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    45 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    450 x 420 x 380 mm
  • External Dimension (WxDxH)
    570 x 530 x 520 mm
  • Packed Dimension (WxDxH)
    610 x 560 x 580 mm
  • 40ft Container Load
    314 pcs
  • GTIN / EAN
    5708181712976
  • Product Group - Delivery services
    Group 1

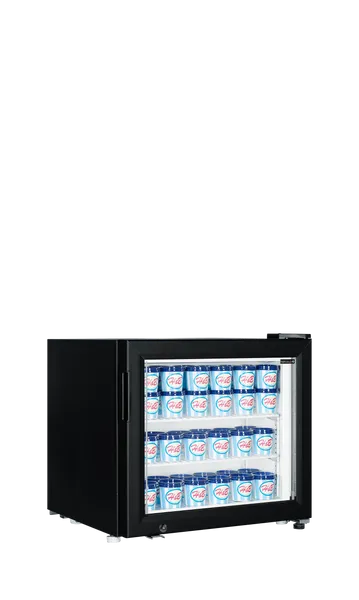

44339 UF50G Black content image

Downloads

Description

Spare parts

  • 2
    Item no. 12366Heated Glass Door W. Lock
  • 3
    Door Gasket
    Item no. 12029Door Gasket
  • 4
    Top Hinge
    Item no. 12950Top Hinge
  • 5
    Bolt For Top Hinge
    Item no. 12731Bolt For Top Hinge
  • 6
    Flat Washer
    Item no. 10052Flat Washer
  • 7
    Spring Washer
    Item no. 10109Spring Washer
  • 8
    Top Hinge Cover
    Item no. 12963Top Hinge Cover
  • 9
    Screw For Top Hinge Cover
    Item no. 12923Screw For Top Hinge Cover
  • 10
    Screw Cap
    Item no. 10084Screw Cap
  • 11
    Bushing
    Item no. 12783Bushing
  • 14
    LED Light
    Item no. 15572LED Light
  • 15
    Lamp Cover
    Item no. 15399Lamp Cover
  • 16
    Lamp Cover Holder
    Item no. 15422Lamp Cover Holder
  • 19
    Shelf Clip
    Item no. 15084Shelf Clip
  • 20
    Shelf
    Item no. 15024Shelf
  • 23
    Lock Bracket
    Item no. 10689Lock Bracket
  • 24
    Foot For Hinge
    Item no. 14588Foot For Hinge
  • 25
    Foot
    Item no. 14582Foot
  • 26
    Washer For Bottom Hinge
    Item no. 13024Washer For Bottom Hinge
  • 27
    Bottom Hinge
    Item no. 12739Bottom Hinge
  • 29
    Item no. 13652Junction Box
  • 38
    Transformer, LED Light
    Item no. 15682Transformer, LED Light
  • 39
    Transformer For Door 24V
    Item no. 12428Transformer For Door 24V
  • 44
    Fan
    Item no. 13462Fan
  • 45
    Condenser
    Item no. 14104Condenser
  • 49
    Filter Drier
    Item no. 15711Filter Drier
  • 50
    Thermostat K50B-Q6784-000
    Item no. 13997Thermostat K50B-Q6784-000
  • 51
    Item no. 14028Thermostat Label
  • 52
    Item no. 13947Thermostat Box
  • 53
    Item no. 13954Thermostat Box Cover
  • 54
    Light Switch Black
    Item no. 13746Light Switch Black
  • 55
    Compressor FBT45 R290
    Item no. 11712Compressor FBT45 R290
  • 56
    Item no. 11225Rear Grill
  • 57
    Lock With Keys
    Item no. 10723Lock With Keys
  • 58
    Key
    Item no. 10671Key
