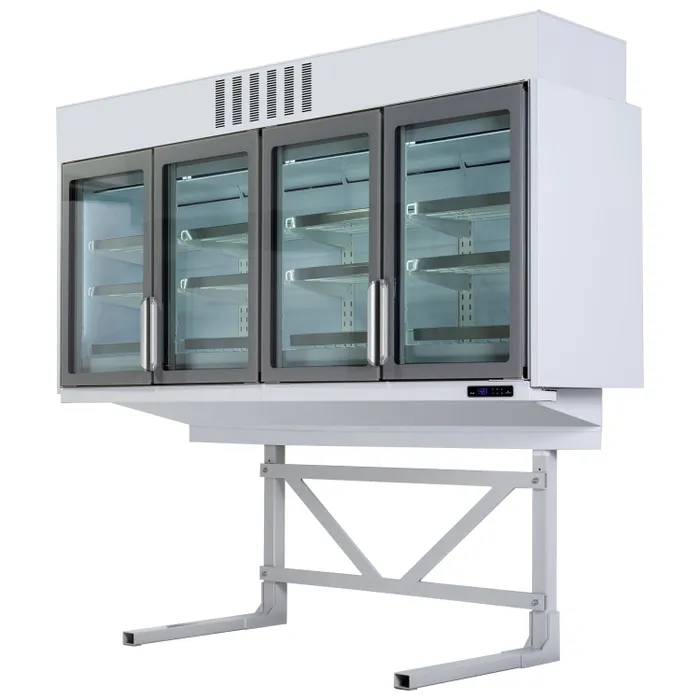

Panoramic Top Case Freezer

SUPER ARV215DE

Product.ItemNumber: 20292

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Vertical LED interior light with switch

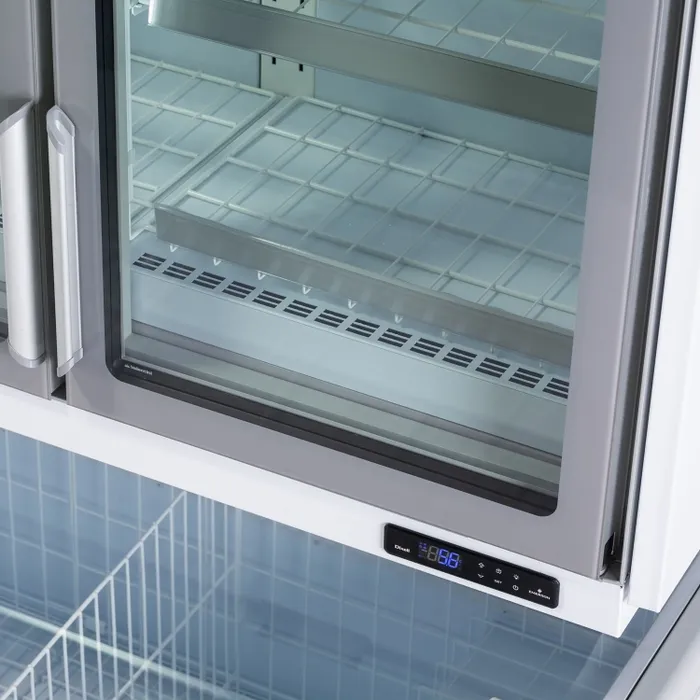

  • Digital controller and temperature display
  • Heated Self-closing glass doors
  • Requires display chiller/freezer to sit underneath
  • Available in white or anthracite (RA7016) finish
  • Ticket strip and acrylic front riser as standard
Product.EnergyArrow
Product.Downloads.ProductSheet
ProductDetail.Shipping.Header

ProductDetail.TechnicalSpecificationHeader

Measures and Content

  • Total Display Area
    1.7 m²
  • Temperature Range
    -24 to -18 °C
  • Climate Class
    3
  • Gross / Net Weight
    542 / 462 kg
  • Gross / Net Volume
    760 / 642 l

Design and Material

  • Door Number & Type
    4 hinged glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    8
  • Shelf Color
    White
  • Feet / Legs
    4 adjustable feet
  • Exterior Finish
    White
  • Interior Finish
    White
  • Interior Light
    LED

Cooling and Functions

  • Type of Defrost
    Electric
  • Refrigerant
    R290
  • Refrigerant Charge
    2 x 60 g
  • Thermometer

Power and Consumption

  • Energy Class
    C
  • Max Ambient
    25°C at 60% RH
  • Energy Consumption
    15.5 kWh/24h
  • Annual Energy Consumption
    5657 kWh/year
  • Power
    13 Amp
  • Input Power
    1300 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    48 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    2050 x 422 x 740 mm
  • External Dimension (WxDxH)
    2500 x 940 x 880 mm
  • Packed Dimension (WxDxH)
    2505 x 1060 x 1670 mm
  • 40ft Container Load
    13 pcs
  • GTIN / EAN
    5708181617219
  • Product Group - Delivery services
    Group 5
