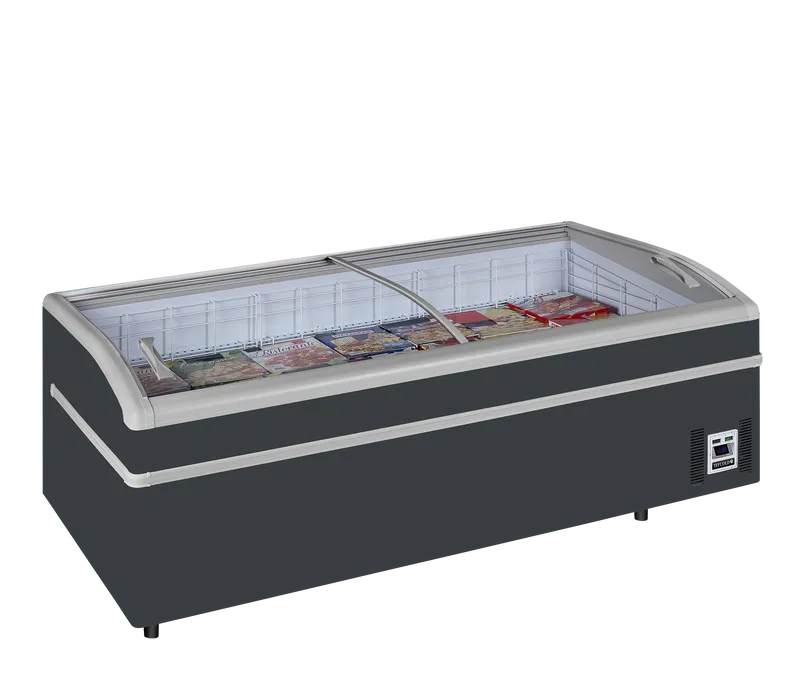

High Vision Supermarket Freezer
SUPER 200DE RAL7016
Product.ItemNumber:32182
Product.Brand:TEFCOLD
- Curved sliding lids
- Static cooling
- Automatic defrost
- Dual temp options available
- LED interior light with switch
- Digital controller and temperature display
- Low maintenance condensor
- Bumper bars
- 2 Dividers supplied as standard
- Multiplexable,shelving kit options
- Defrost drain
- EPOS ticket strip option
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 40.00
- Remove & Dispose£ 130.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight168 / 127 kg
- Total Display Area1.29 m²
- Temperature Range-24 to -18 °C
- Climate Class3
- Gross / Net Volume800 / 580 l
Design and Material
- Exterior FinishAnthracite RAL7016
- Interior FinishWhite
- Feet / Legs4 adjustable legs
- Interior LightLED
- Lid Number & Type2 curved sliding temp. glass lids
- Number of dividers2 pcs
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge2 x 60 g
- Thermometer
Power and Consumption
- Energy ClassC
- Max Ambient+25°C, 60% RH
- Annual Energy Consumption2357 kWh/year
- Energy Consumption6.46 kWh/24h
- EEI33 %
- Power13 Amp
- Input Power662 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level48 dB(A)
Dimensions
- 40ft Container Load 33 pcs
- GTIN / EAN5708181705459
- Product Group - Delivery servicesGroup 3
- External Dimension (WxDxH)2020 x 920 x 790 mm
- Internal Dimension (WxDxH)1862 x 773 x 490 mm
- Packed Dimension (WxDxH)2110 x 1020 x 850 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 02
Product.ItemNumber 11463Drain Plug - 09Product.ItemNumber 20449Green Light Switch
- 10
Product.ItemNumber 13708Blind Plug - 12
Product.ItemNumber 13863Electronic Controller XR77CX - 12
Product.ItemNumber 48723Thermostat XR02CX - Two Compressors - 13
Product.ItemNumber 10936Control Panel - 15
Product.ItemNumber 14594Plastic Foot 75 mm - 16Product.ItemNumber 10179Frontal Bumper Bar Profile
- 17
Product.ItemNumber 10186Protective Corner - 18Product.ItemNumber 10190Side Bumper Bar Profile
- 19
Product.ItemNumber 13693Protective Terminal - 20
Product.ItemNumber 12727Handle Lower Lid - 22Product.ItemNumber 35111Curved Sliding Lid Lower
- 23Product.ItemNumber 35112Curved Sliding Lid Upper
- 28Product.ItemNumber 15540LED Cover
- 29Product.ItemNumber 15525LED
- 30
Product.ItemNumber 14829Wire Grid - 31
Product.ItemNumber 11208Plastic Grid - 32
Product.ItemNumber 15696Filter - 33
Product.ItemNumber 14206Right Condenser - 34
Product.ItemNumber 14201Left Condenser - 35
Product.ItemNumber 11627Compressor NUT60CAB - 37
Product.ItemNumber 15746Hot Gas Valve - 38
Product.ItemNumber 15656LED Transformer - 39
Product.ItemNumber 13522Fan Motor - 40
Product.ItemNumber 10174Flexible Rubber Bumper - 41
Product.ItemNumber 15749Hot Gas Valve Coil 230V-50Hz - 42Product.ItemNumber 15271Ticket Strip
- 43
Product.ItemNumber 10938Control Panel - 44Product.ItemNumber 10749Auto Defrost Grids
- 45
Product.ItemNumber 10486Transparent Plastic Cover - 46
Product.ItemNumber 11576Water Drain Corner - 47
Product.ItemNumber 11577Water Flow Drain Corner - 48Product.ItemNumber 35113Side Water Drain Rail
- 49Product.ItemNumber 11551Frontal Water Drain Rail
- 50Product.ItemNumber 35114Evaporation Heater
- 51
Product.ItemNumber 47966Heater Tranformer - 52
Product.ItemNumber 10117Transformer Holder - 53
Product.ItemNumber 11600Water Tank Cover - 54
Product.ItemNumber 13283Overflow Protection - 55
Product.ItemNumber 11599Water Tank - 56
Product.ItemNumber 47968Water Hose - 57Product.ItemNumber 33107Electrical Box Connection
