Granite table top
Guides for pizza trays

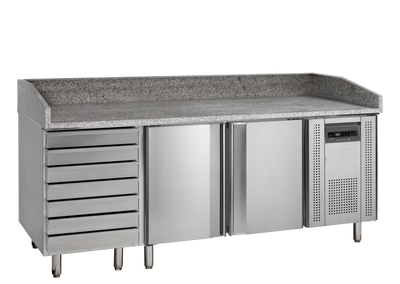

Pizza Table
PT1310 + VK38-200
Product.ItemNumber: 23434
- New design
- Stainless steel
- Guides for 7 pizza trays in each door (400x600 mm)
- VK38-200 Topping unit for GN1/3 pans
- Granite worktop
- Ventilated cooling
- Automatic defrost
- Self-closing doors
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Weight408 / 393 kg
- Gross / Net Volume390 / 370 l
Design and Material
- Feet / Legs8 adjustable legs
- Exterior FinishSS304
- Interior FinishSS304
- Door Number & Type2 hinged self-closing doors
- Shelves Number & Type14 guides for pizza trays
- Shelf Dimensions400 x 600 mm
- Drawers7 dough drawers pcs
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge95 g
- Thermometer
Power and Consumption
- Energy ClassB
- Max Ambient38°C at 60% RH
- Energy Consumption2.41 kWh/24h
- Annual Energy Consumption880 kWh/year
- Input Power300 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level42 dB(A)
Dimensions
- Internal Dimension (WxDxH)1052 x 630 x 589 mm
- External Dimension (WxDxH)2045 x 800 x 1445 mm
- Packed Dimension (WxDxH)2050 x 840 x 1360 mm
- 40ft Container Load 28 pcs
- GTIN / EAN5708181359690
- Product Group - Delivery servicesGroup 2
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 01
Product.ItemNumber 10112Support Located Nut - 05
Product.ItemNumber 13009Upper Hinge (2 Parts) - 06
Product.ItemNumber 12829Down Hinge Left - 07
Product.ItemNumber 12833Down Hinge Right - 08Product.ItemNumber 14601Leg 115-170 mm (4 Pcs) - Before 03-2024
- 09
Product.ItemNumber 15209Wire Shelf 600x410 Euronorm - 10
Product.ItemNumber 10051Fixing Bracket Set For VK - 12
Product.ItemNumber 12215Door/Right With Gasket And Hin - 13
Product.ItemNumber 12780Door Bushing For 7,6 mm Pin - 14
Product.ItemNumber 12624Gasket 470 x 610 mm - 15
Product.ItemNumber 12937Spring Hinge - 17
Product.ItemNumber 12211Door/Left With Gasket And Hing - 20
Product.ItemNumber 12908Nut For Upper Hinge - 24
Product.ItemNumber 14339Evaporator 440x94x269mm /w Capillary Tube Ø1.15x3000 - 31
Product.ItemNumber 11535Evaporator Water Pan - 34Product.ItemNumber 14384Evaporator Cover
- 40Product.ItemNumber 11728Compressor HPKD190A R600
- 41
Product.ItemNumber 13309Basket Guard Grills - 42
Product.ItemNumber 13384Condensor Fan BD01-01/170 - 43
Product.ItemNumber 13421Evaporator Fan 2018 - 44
Product.ItemNumber 14172Condenser Before 2016 - 45
Product.ItemNumber 15722Filter Drier 20 G - 46
Product.ItemNumber 14220Evaporate Pipe - 52
Product.ItemNumber 11025Front Panel - 53
Product.ItemNumber 10725Lock With Keys - 55
Product.ItemNumber 13754Main Switch - 60
Product.ItemNumber 13896Probe NTC Dixell/Carel 10 Kohm - 61
Product.ItemNumber 12515Guides (Set) L-Shape - 62
Product.ItemNumber 12464Drawer Guides Set L/R - 63Product.ItemNumber 12451Dough Drawer
- 65
Product.ItemNumber 10984Fixed Front Panel
