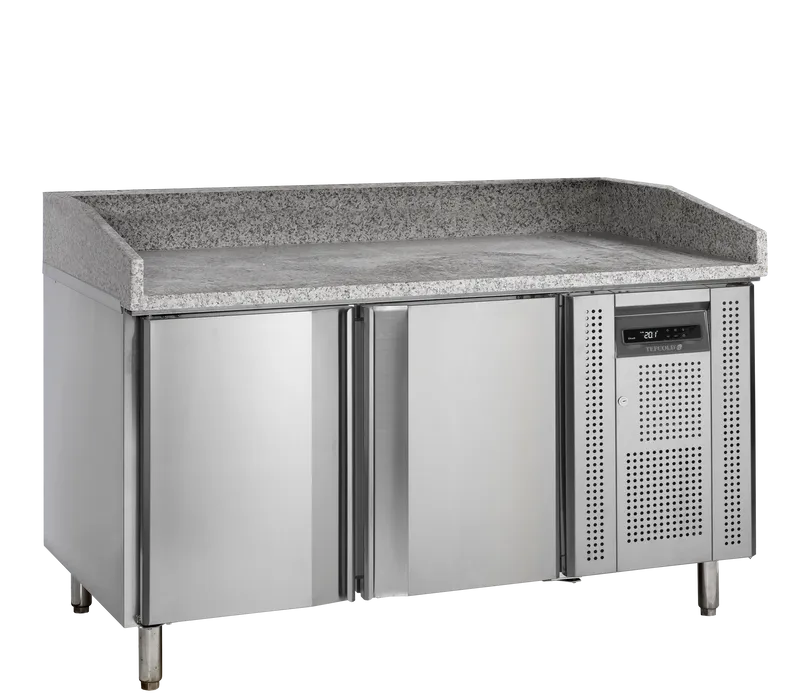

Pizza Table
PT1200
Product.ItemNumber: 20069
Product.Brand: TEFCOLD
- Fully automatic
- Fan assisted cooling
- Adjustable shelves
- Castors
- Digital controller and temperature display
- Self-closing doors
- Replaceable door gasket
- Doors accept 60x40 Euronorm trays (not supplied)
- Granite worktop
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 50.00
- Remove & Dispose£ 162.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight253 / 243 kg
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Volume390 / 370 l
Design and Material
- Exterior FinishSS304
- Interior FinishSS304
- Door Number & Type2 hinged self-closing doors
- Shelf Dimensions400 x 600 mm
- Shelves Number & Type14 guides for pizza trays
- Feet / Legs4 adjustable legs
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic / Off Cycle
- RefrigerantR600a
- Refrigerant Charge95 g
- Thermometer
Power and Consumption
- Energy ClassB
- Max Ambient38°C at 60% RH
- Annual Energy Consumption847 kWh/year
- Energy Consumption2.32 kWh/24h
- EEI33.5 %
- Power13 Amp
- Input Power300 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level42 dB(A)
Dimensions
- 40ft Container Load 28 pcs
- GTIN / EAN5708181360641
- Product Group - Delivery servicesGroup 4
- External Dimension (WxDxH)1510 x 800 x 1415 mm
- Internal Dimension (WxDxH)1052 x 630 x 589 mm
- Packed Dimension (WxDxH)1550 x 840 x 1050 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 03
Product.ItemNumber 31397Thermostat XW20LRH - 04Product.ItemNumber 32928Lock, Screwdriver Operated
- 05
Product.ItemNumber 32022Front Panel 2020 Hexagonal Design - 07
Product.ItemNumber 12780Door Bushing For 7,6 mm Pin - 08
Product.ItemNumber 10020Filter 182 x 215 mm - 09
Product.ItemNumber 15723Filter Drier 20 G - 11
Product.ItemNumber 14181Condenser From 2016 - 14Product.ItemNumber 32810Condenser Fan
- 15Product.ItemNumber 13308Basket Guard Grill
- 16
Product.ItemNumber 11569Water Box - 17
Product.ItemNumber 14220Evaporate Pipe - 18
Product.ItemNumber 12833Down Hinge Right - 19
Product.ItemNumber 11728Compressor HPKD190A R600 - 21
Product.ItemNumber 14546Suction Pipe - 22
Product.ItemNumber 12754Bottom Hinge For Front Panel - 23
Product.ItemNumber 10705Lock Hook - 25Product.ItemNumber 14601Leg 115-170 mm (4 Pcs) - Before 03-2024
- 27Product.ItemNumber 11398Granite Top
- 28
Product.ItemNumber 32934Unit Room Cover - 30
Product.ItemNumber 11535Evaporator Water Pan - 31
Product.ItemNumber 14339Evaporator 440x94x269mm /w Capillary Tube Ø1.15x3000 - 32Product.ItemNumber 13458Evaporator Fan Support
- 33Product.ItemNumber 13437Evaporator Fan Ec-2P
- 36Product.ItemNumber 32023Sensor Clip
- 38
Product.ItemNumber 32935Back Support Left - 39
Product.ItemNumber 12515Guides (Set) L-Shape - 40
Product.ItemNumber 32937Front Support Left - 41
Product.ItemNumber 12624Gasket 470 x 610 mm - 43
Product.ItemNumber 32345Door Left 2020 - 45
Product.ItemNumber 12908Nut For Upper Hinge - 46
Product.ItemNumber 13896Probe NTC Dixell/Carel 10 Kohm - 46Product.ItemNumber 51615Sensor
- 47Product.ItemNumber 51624Middle Bridge
- 49Product.ItemNumber 32026Drain Pipe
- 50Product.ItemNumber 32027Drain Pipe Clip
- 51
Product.ItemNumber 12829Down Hinge Left - 52
Product.ItemNumber 12989Top Hinge Right 2016 - 53
Product.ItemNumber 12976Top Hinge Left 2016 - 54
Product.ItemNumber 12967Top Hinge Front Panel - 55
Product.ItemNumber 32936Back Support Right - 56
Product.ItemNumber 32346Door Right 2020 - 57
Product.ItemNumber 32938Front Support Right
