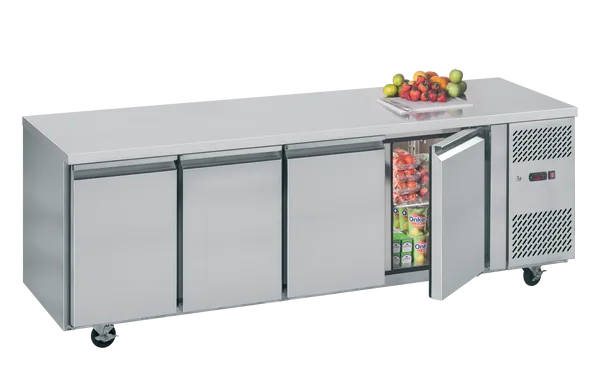

Gastronorm Counter

PH40

Item no.: 20253

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Digital controller and temperature display
  • Self-closing doors
  • High quality catering grade 304 stainless steel
  • Replaceable door gasket
  • 1/1 Gastronorm cupboards
  • Accepts Gastronorm pans (not supplied)
  • Castors, 2 lockable
Energy arrow
Product Sheet
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    -2 to +8 °C
  • Climate Class
    4
  • Gross / Net Weight
    273 / 235 kg
  • Gross / Net Volume
    560 / 450 l

Design and Material

  • Door Number & Type
    4 hinged solid doors
  • Shelves Number & Type
    4
  • Exterior Finish
    Stainless steel
  • Interior Finish
    Stainless steel

Cooling and Functions

  • Type of Defrost
    Off Cycle
  • Refrigerant
    R290
  • Refrigerant Charge
    130 g
  • Thermometer

Power and Consumption

  • Energy Class
    A
  • Max Ambient
    30°C at 55% RH
  • Energy Consumption
    1.91 kWh/24h
  • Annual Energy Consumption
    697 kWh/year
  • Input Power
    400 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    65 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    1692 x 570 x 580 mm
  • External Dimension (WxDxH)
    2230 x 700 x 840 mm
  • Packed Dimension (WxDxH)
    x x mm
  • 40ft Container Load
    32 pcs
  • GTIN / EAN
    5708181991425
  • Product Group - Delivery services
    Group 4
20253 PH40 content image

Downloads

Spare parts

  • 6
    Item no. 33193Door Brake -Left
  • 8
    Item no. 35443Hinge Stopper
  • 9
    Item no. 35200Door Spring Rod
  • 13
    Item no. 35444Lock Pedestal
  • 15
    Item no. 35118Digital Controller
  • 16
    Item no. 35445Wire Harness
  • 19
    Item no. 35446Small Panel
  • 21
    Item no. 35206Front Panel Hinge Axis-Top
  • 22
    Item no. 35447Condenser
  • 23
    Item no. 35231Fan Blade
  • 24
    Item no. 35233Fan Motor
  • 25
    Item no. 35232Fan Motor Bracket
  • 26
    Item no. 35457Drain Pipe Cover
  • 28
    Item no. 35236Clip
  • 29
    Item no. 35289Filter Drier
  • 32
    Item no. 35125Compressor
  • 35
    Item no. 35448Suction Coil
  • 36
    Item no. 35452Fan Motor Plate
  • 38
    Item no. 35454Airflow Plate-M
  • 39
    Item no. 35453Airflow Plate-LR
  • 40
    Item no. 35455Probe
  • 42
    Item no. 35456Drain Pan
  • 46
    Item no. 35818Long Airflow Plate
  • 47
    Item no. 35450Airflow Plate 1
  • 48
    Item no. 35451Cover Plate For Evaporator
  • 49
    Item no. 35812Post
  • 50
    Item no. 35459Pilaster
  • 52
    Item no. 35460Shelf Holder
  • 53
    Item no. 35461Shelf Holder
  • 54
    Item no. 35462Shelf Holder
  • 55
    Shelf for R290 Variants
    Item no. 21246Shelf for R290 Variants
  • 57
    Item no. 35819Desktop
  • 59
    Item no. 35821Wire
  • 60
    Item no. 35467Door Switch
  • 63
    Item no. 35471Right Plate
  • 64
    Item no. 35466Power Supply Cover Plate
  • 65
    Item no. 35473Protecting Net
  • 66
    Item no. 35822Cabinet Frame
  • 67
    Item no. 35464Cabinet Frame
  • 69
    Item no. 35472Condenser Wind Cover
  • 71
    Item no. 35474Magnetic Steel
