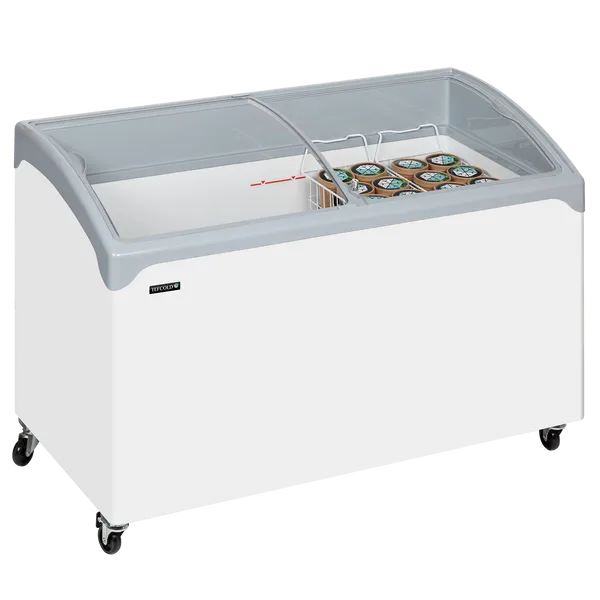

Sliding Curved Glass Lid Chest Freezer

NIC400SCEB

Item no.: 20132

  • Curved sliding lids
  • Static cooling
  • Lock
  • Castors
  • Digital temperature display
  • Fan assisted condenser for energy efficiency
  • Defrost drain
Energy arrow
Product Sheet
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    -24 to -14 °C
  • Climate Class
    5
  • Gross / Net Weight
    87 / 72 kg
  • Gross / Net Volume
    388 / 298 l

Design and Material

  • Castors
    4 wheels, 2 with brake
  • Exterior Finish
    White
  • Interior Finish
    White painted steel
  • Lock
  • Lid Number & Type
    2 curved sliding glass lid
  • Basket Number & Type
    5 Wire baskets, white
  • Max No. of Baskets
    5 pcs

Cooling and Functions

  • Type of Controller
    Mechanical
  • Type of Cooling
    Static
  • Type of Defrost
    Manual
  • Refrigerant
    R290
  • Refrigerant Charge
    105 g
  • Thermometer

Power and Consumption

  • Energy Class
    E
  • Max Ambient
    40°C at 40% RH
  • Energy Consumption
    2.75 kWh/24h
  • Annual Energy Consumption
    1004 kWh/year
  • Input Power
    179 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    45 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    1180 x 510 x 571 mm
  • External Dimension (WxDxH)
    1320 x 650 x 918 mm
  • Packed Dimension (WxDxH)
    1390 x 765 x 990 mm
  • 40ft Container Load
    50 pcs
  • GTIN / EAN
    5708181002701
  • Product Group - Delivery services
    Group 2
20132 NIC400SCEB content image

Downloads

Spare parts

  • 1
    Item no. 13103Lid Group Complete
  • 2
    Item no. 13191Upper Lid
  • 3
    Lock With Keys
    Item no. 10719Lock With Keys
  • 4
    Item no. 13041Bottom Glass Lid With Frame
  • 5
    Inner Drain Plug
    Item no. 11553Inner Drain Plug
  • 6
    Thermometer Digital White
    Item no. 13793Thermometer Digital White
  • 7
    Outer Drain Plug
    Item no. 11559Outer Drain Plug
  • 9
    Item no. 11129Grill For Side
  • 10
    Item no. 15772Ice Scraper
  • 11
    Item no. 11782Compressor NLY90LAA R290
  • 12
    U-Shaped Lock For Wheels
    Item no. 14653U-Shaped Lock For Wheels
  • 13
    Rubber Cap For U-Lock
    Item no. 10734Rubber Cap For U-Lock
  • 15
    Fan Motor
    Item no. 13519Fan Motor
  • 16
    Item no. 13494Fan Blade Ø200 5 Wings
  • 17
    Condenser
    Item no. 14095Condenser
  • 18
    Filter Drier
    Item no. 15699Filter Drier
  • 21
    Item no. 13989Thermostat Group
  • 22
    Thermostat K50B-S3564 Ranco
    Item no. 14000Thermostat K50B-S3564 Ranco
  • 23
    Item no. 13959Thermostat Bracket
  • 25
    Wheel With Brake U-Mount
    Item no. 14674Wheel With Brake U-Mount
  • 26
    Wheel W/O Brake U-Mount
    Item no. 14663Wheel W/O Brake U-Mount
  • 30
    Item no. 13621Cable Holder
  • 31
    Item no. 13616Cable Fixture
  • 32
    Wire Basket For Div 218 mm
    Item no. 14733Wire Basket For Div 218 mm
