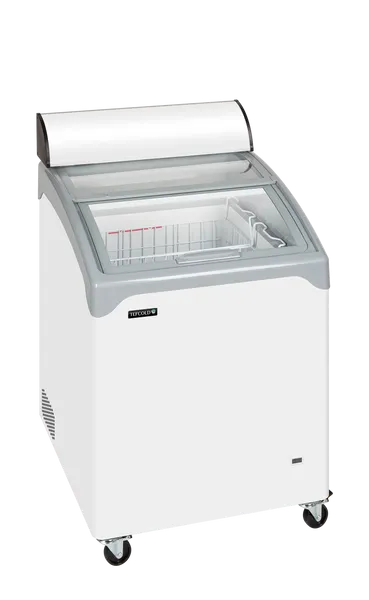

Sliding Curved Glass Lid Chest Freezer

NIC101CP

Item no.: 48856 (Substitution for 22486 NIC100CP)

  • Curved sliding lid with lock
  • Static cooling
  • Thermometer
  • Divider system
  • LED illuminated canopy
  • Castors, 2 lockable
Energy arrow
Product Sheet
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    -24 to -14 °C
  • Climate Class
    5
  • Gross / Net Weight
    50 / 47 kg
  • Gross / Net Volume
    130 / 115 l

Design and Material

  • Castors
    4 wheels, 2 with brake
  • Exterior Finish
    White
  • Interior Finish
    White painted steel
  • Lock
  • Lid Number & Type
    1 flat sliding glass lid
  • Basket Number & Type
    2 Wire basket
  • Divider System
    No
  • Max No. of Baskets
    2 pcs

Cooling and Functions

  • Type of Controller
    Mechanical
  • Type of Cooling
    Static
  • Type of Defrost
    Manual
  • Refrigerant
    R600a
  • Refrigerant Charge
    50 g
  • Thermometer

Power and Consumption

  • Energy Class
    D
  • Max Ambient
    40°C at 40% RH
  • Energy Consumption
    1.35 kWh/24h
  • Annual Energy Consumption
    491 kWh/year
  • Input Power
    105 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    41 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    510 x 510 x 571 mm
  • External Dimension (WxDxH)
    665 x 665 x 1080 mm
  • Packed Dimension (WxDxH)
    700 x 700 x 970 mm
  • 40ft Container Load
    102 pcs
  • GTIN / EAN
    5708181731090
  • Product Group - Delivery services
    Group 1
48856 NIC101CP content image

Downloads

Description

Spare parts

  • 1
    Item no. 12667Handle For Lid Grey
  • 3

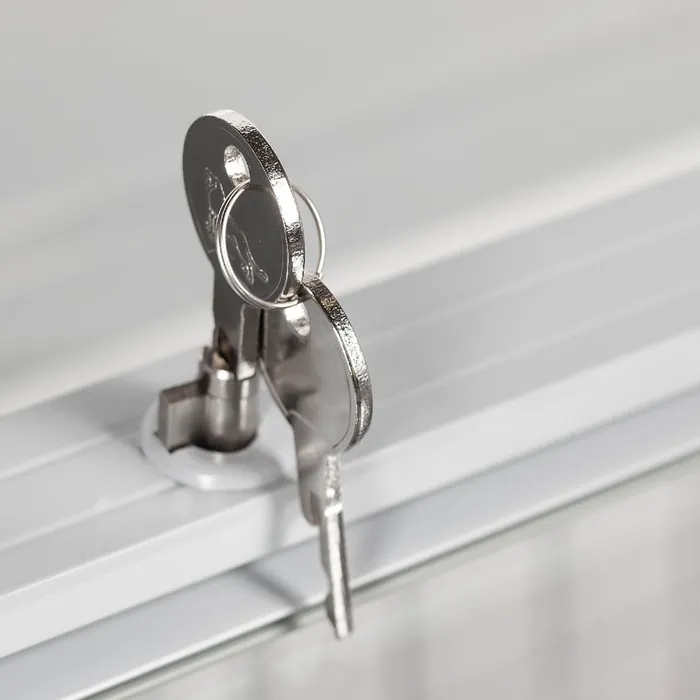

    Lock With Keys
    Item no. 10718Lock With Keys
  • 6
    Thermometer Digital White
    Item no. 13793Thermometer Digital White
  • 7
    Inner Drain Plug
    Item no. 11553Inner Drain Plug
  • 9
    Rear Grill
    Item no. 11219Rear Grill
  • 10
    Item no. 15772Ice Scraper
  • 12
    Evaporator Fan Blade 190/28°
    Item no. 13426Evaporator Fan Blade 190/28°
  • 14
    Item no. 34974Fan Motor Foot Sheet H=55mm
  • 19
    Item no. 38818Dryer
  • 20
    Drain Plug Outer White
    Item no. 11465Drain Plug Outer White
  • 22
    Thermostat K50B-S3564 Ranco
    Item no. 14000Thermostat K50B-S3564 Ranco
  • 25
    Wheel Without Brake
    Item no. 14678Wheel Without Brake
  • 26
    Wheel With Brake (70*23*10)
    Item no. 14666Wheel With Brake (70*23*10)
  • 27
    Item no. 11191Opal Light Plate
  • 28
    Item no. 15687Welex Light Plate 627 x 192mm
  • 29
    LED Light
    Item no. 15566LED Light
  • 30
    Item no. 51046Holder For LED Strip
  • 31
    Item no. 15757Aluminium Profile 625 mm
  • 32
    Item no. 10246Canopy End Piece Right
  • 33
    Item no. 10245Canopy End Piece Left
  • 35
    Light Switch
    Item no. 13737Light Switch
