Digital controller
Strong castors

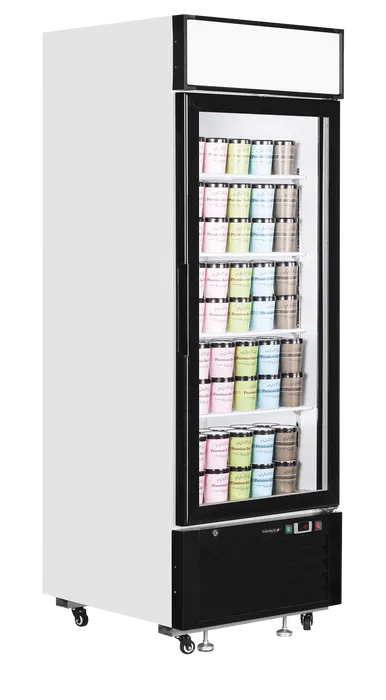

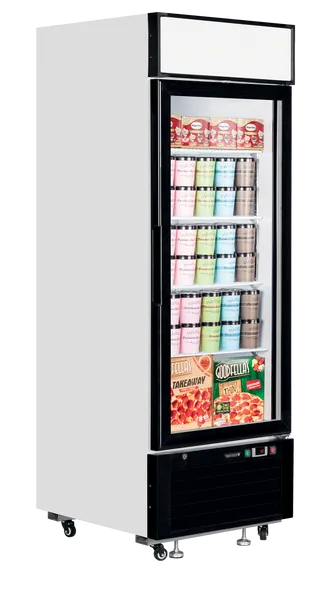

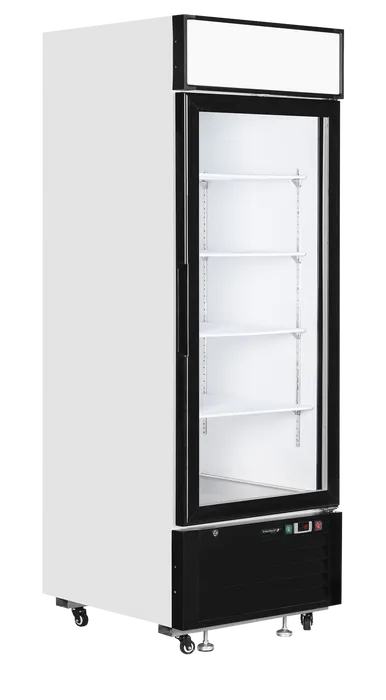

Glass Door Display Freezer
LGF2500
Item no.: 20269
Brand: TEFCOLD
- Fully automatic, fan assisted cooling
- Adjustable shelves
- Self closing doors with stay open feature for ease of loading
- LED interior light with switch (2 LED strips per door)
- Digital controller and temperature display
- Light canopy with switch
- Heated glass door to prevent condensation
- Internal stainless steel base
- Castors and locking feet
- Next day delivery available on product
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Temperature Range-25 to -14 °C
- Climate Class4
- Gross / Net Weight140 / 120 kg
- Gross / Net Volume496 / 405 l
- Total Display Area0.69 m²
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Interior Light2 x Vertically LED in door frame
- Door Number & Type1 hinged glass door
- Door ReversibleNo
- Shelves Number & Type5
- Shelf Dimensions545*622
Cooling and Functions
- Type of CoolingVentilated
- Type of DefrostAutomatic, electric
- RefrigerantR290
- Refrigerant Charge120 g
- Thermometer
Power and Consumption
- Energy ClassC
- EPREL No438095
- Max Ambient30°C at 55% RH
- Energy Consumption7.79 kWh/24h
- Annual Energy Consumption2842 kWh/year
- Power13 Amp
- Input Power650 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level59 dB(A)
Dimensions
- Internal Dimension (WxDxH)565 x 640 x 1520 mm
- External Dimension (WxDxH)685 x 805 x 2065 mm
- Packed Dimension (WxDxH)745 x 860 x 2210 mm
- 40ft Container Load 44 pcs
- GTIN / EAN5708181991272
- Product Group - Delivery servicesGroup 2
Downloads
Description
Spare parts
- 01Item no. 33152Front Bottom Panel
- 02.1Item no. 21175RH Top hinge
- 02.2Item no. 32344Door shaft sleeve top
- 02.3
Item no. 33153Door Gasket - 02.4Item no. 21063RH Freezer Door (Glass)
- 02.5Item no. 21193Door Stopper for R290 models
- 02.6Item no. 21026Door Hinge Bush
- 02.7
Item no. 31249Door Tension Bar - 02.11Item no. 33154Door Stopper-Bottom
- 02.12Item no. 33155Screw M6x8
- 02.13Item no. 21173Lower Right Hand Hinge
- 02.14Item no. 33156Screw M6x16
- 02.15
Item no. 21196Door LED and Logo LED for LGC500 and LGF5000 - 02.16Item no. 33157Showcase Magnetic Steel
- 03.1
Item no. 21209Upper Logo Frame (Top Strip) - 03.2
Item no. 21208LH Logo End Cap - 03.3
Item no. 21207RH Logo End Cap - 03.4
Item no. 30973Plain Logo (675mm x 230mm ) - 03.5Item no. 33158Gate Magnetic Switch
- 03.6
Item no. 33159Top Panel Canopy Frame-Bottom - 04.1
Item no. 21089Evaporator 2021 - 04.2
Item no. 33160Evap Left Cover - 04.3
Item no. 33161Evap Right Cover - 04.4Item no. 21157Drain Heater 320mm
- 04.5Item no. 21078Plastic Straight Fitting for Drain
- 04.6Item no. 21055Evaporator Tray
- 04.7Item no. 21077Plastic Elbow Drain Fitting
- 04.9
Item no. 33162Drain Pan Foam - 04.10
Item no. 33163Drain Pan Cover - 04.11Item no. 33164Evap Fan Braket
- 04.14Item no. 21224Waterproof Controller Probe R290 versions
- 04.15Item no. 33166Evap Temp Probe
- 04.16
Item no. 33167Evap Front Cover - 04.17Item no. 47983Evap Fan Motor Cover Black
- 05.1Item no. 33169Pilastor For Shelf
- 05.2
Item no. 15083Shelf Clip - 05.3
Item no. 21241Shelf with Goalpost SN 1903130013+ R290 Models - 05.4
Item no. 33171Bottom Shelf - 06.2Item no. 33173High Presure Coil
- 06.3Item no. 21098Condenser Fan Motor
- 06.4Item no. 33174Condenser Fan Braket
- 06.5Item no. 33175Condenser Fan Blade
- 06.6
Item no. 31267Solenoid Valve FDF2A (R290 models) - 06.7Item no. 35133Dry Filter
- 06.8Item no. 31264Condenser R290 Models
- 06.9Item no. 21046Condensate Tray (290 x 150 x 50) from 05/15
- 06.11Item no. 33177'T' Three way connecting pipe
- 06.12Item no. 21265Solenoid Valve Coil for R290 versions
- 06.13
Item no. 21266Solenoid Valve Coil for R290 versions - 07Item no. 33178Bottom Frame Cover
- 08
Item no. 33179Left-Right Frame Cover - 09Item no. 33180Top Frame Cover
- 10Item no. 33181Cabinet Wire Heater
- 11
Item no. 21198LED Logo Light Strip - 12Item no. 33182Fastener for Front Bottom Panel
- 13Item no. 21206Lock and Key Set
- 14Item no. 21109Levelling Foot (Upright Units)
- 15Item no. 331832" Castor w/o Brake
- 16
Item no. 33184Back Bottom Barriar - 17Item no. 33185Power Supply
- 18
Item no. 13842Controller Cover - 19Item no. 13840Controller Box Base
- 20Item no. 21254Green on / off power switch
- 21Item no. 33186Digital Controller
- 22Item no. 31296LED Light Switch (Red) R290
- 23Item no. 33187Low Presure Coil Back to Comp
- 24Item no. 33188Back wind deflector stents
- 25Item no. 33189Wind deflector unit
- 26Item no. 33190Back wind deflector
- 27Item no. 33191A drain protection
