    Strong wheels for mobility

  • product-48219-detailimage2

    Bumper bars

  • product-48219-primaryimagenoshadow
  • product-48219-withcontentimagenoshadow
  • product-48219-detailimage1
  • product-48219-detailimage2

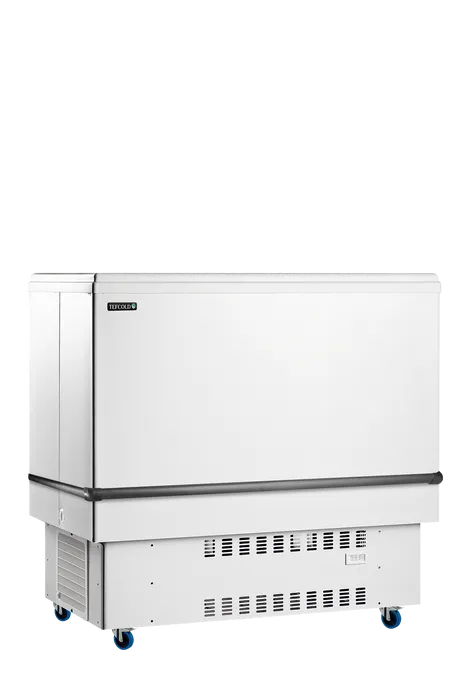

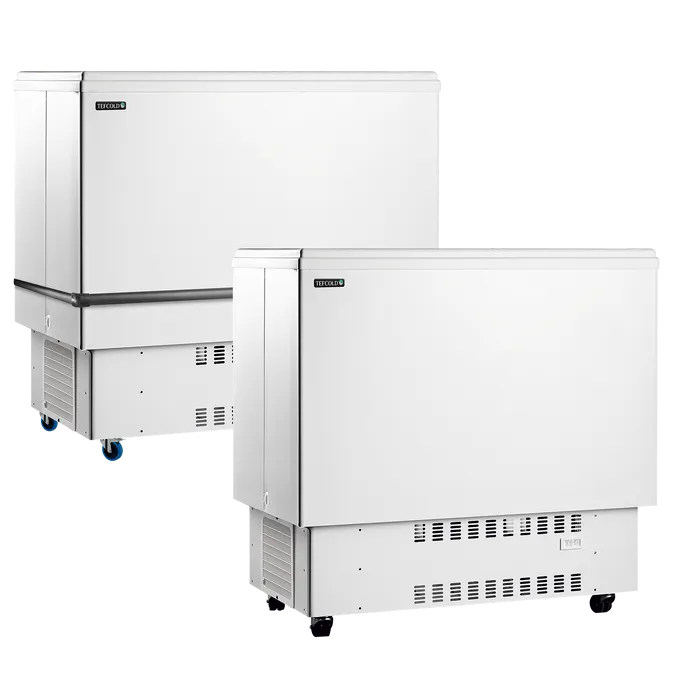

Bottle Dump Cooler

KBAK104PLUS

Item no.: 48219

  • Low energy consumption
  • Impressive storage space
  • Removable top for easy loading

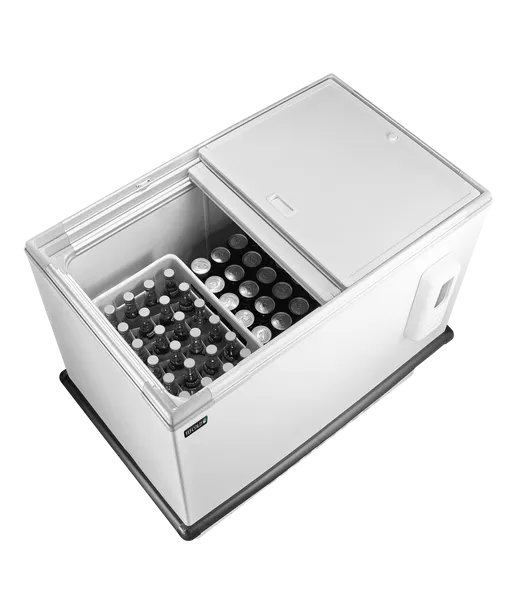

  • Ideal for storing beer and soft drink crates
  • Strong wheels
  • Bumper bars
  • Flat solid sliding lids
  • Static cooling
Energy arrow
Product Sheet
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    +1 to +8 °C
  • Climate Class
    4
  • Gross / Net Weight
    70 / 60 kg
  • Gross / Net Volume
    250 / 226 l
  • Cans 330 ml
    216 pcs
  • Bottles 330 ml
    364 pcs

Design and Material

  • Castors
    Wheels
  • Exterior Finish
    White
  • Interior Finish
    White
  • Interior Light
    No
  • Lock
    Factory Option
  • Lid Number & Type
    2 solid sliding lids

Cooling and Functions

  • Type of Controller
    Mechanical
  • Type of Cooling
    Static
  • Type of Defrost
    Manual
  • Refrigerant
    R600a
  • Refrigerant Charge
    34 g
  • Thermometer

Power and Consumption

  • Energy Class
    B
  • Max Ambient
    30°C at 55% RH
  • Energy Consumption
    0.54 kWh/24h
  • Annual Energy Consumption
    198 kWh/year
  • Input Power
    190 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    45 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    900 x 500 x 555 mm
  • External Dimension (WxDxH)
    1025 x 625 x 1000 mm
  • Packed Dimension (WxDxH)
    660 x 1100 x 1060 mm
  • 40ft Container Load
    72 pcs
  • GTIN / EAN
    5708181729271
  • Product Group - Delivery services
    Group 2
48219 KBAK104PLUS content image

Downloads

Description

Spare parts

  • 2
    Item no. 48214Upper Solid Lid
  • 3
    Item no. 48196Door Fixer White
  • 3
    Item no. 48197Door Fixer Black
  • 3
    Item no. 48215Lower Solid Lid
  • 4
    Item no. 48198Condenser
  • 5
    Item no. 48199Front Panel Engine Zone
  • 5
    Item no. 48200Back Panel Engine Zone
  • 6
    Item no. 47918Bottom Side Grill
  • 7
    Item no. 48201Thermometer
  • 8
    Item no. 47454Thermostat
  • 9
    Item no. 48202Thermostat Sticker
  • 10
    Item no. 48203Thermostat Button
  • 11
    Item no. 48204Plug of Sewage Valve
  • 12
    Item no. 48205Cover Sewage Valve
  • 13
    Item no. 48206Sewage Valve
  • B1
    Item no. 48207Motor Base Panel
  • B1.1
    Item no. 48208Wheels Base Panel
  • B2
    Item no. 48209Compressor
  • B2.1
    Item no. 48210Thermo Relay Compressor
  • B3
    Item no. 48211Universal Filter
  • B4
    Item no. 45760Evaporator Fan
  • B6
    Item no. 48216Castor 130mm Set (2x w/ brakes + 2x w/o brakes)
  • B9
    Item no. 48213Bushing
  • C1
    Item no. 48217Bumper Kit
