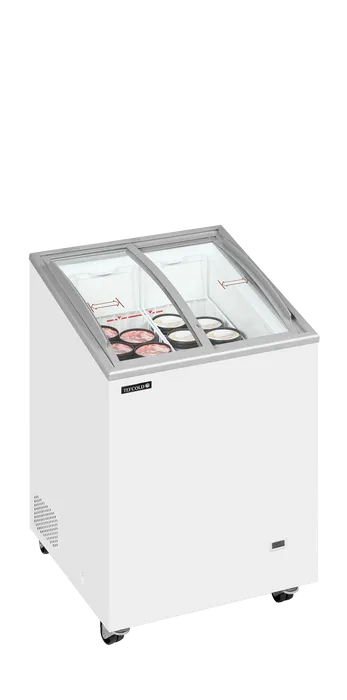

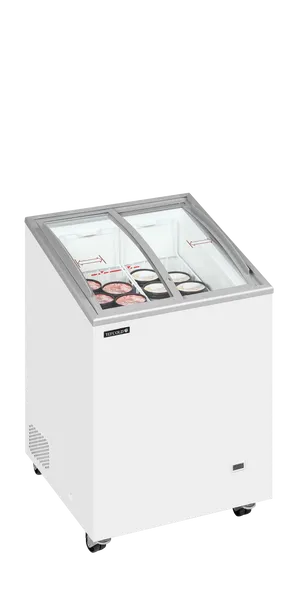

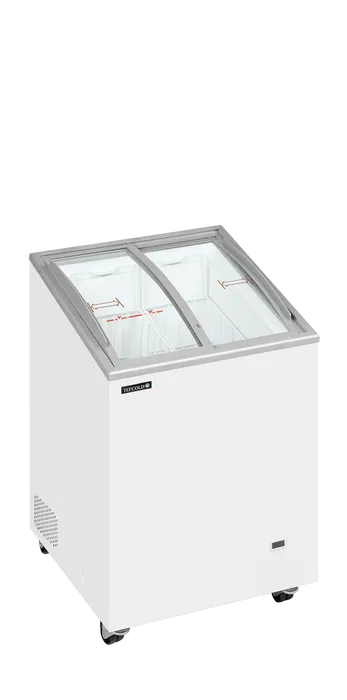

Sliding Curved Glass Lid Chest Freezer

IC101SCEB

Item no.: 48835 (Substitution for 20108 )

  • Sloping display for excellent presentation
  • Curved sliding lids with lock
  • Ideal for branding
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings
Energy arrow
Product Sheet
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    -24 to -14 °C
  • Climate Class
    5
  • Gross / Net Weight
    40 / 37 kg
  • Gross / Net Volume
    100 / 85 l

Design and Material

  • Castors
    4 double castors
  • Exterior Finish
    White
  • Interior Finish
    White painted steel
  • Interior Light
    No
  • Lock
  • Lid Number & Type
    2 curved sliding temp. glass lids
  • Basket Number & Type
    1 Wire basket, white
  • Max No. of Baskets
    2 pcs

Cooling and Functions

  • Type of Controller
    Mechanical
  • Type of Cooling
    Static
  • Type of Defrost
    Manual
  • Refrigerant
    R600a
  • Refrigerant Charge
    60 g
  • Thermometer

Power and Consumption

  • Energy Class
    D
  • Max Ambient
    40°C 40% RH
  • Energy Consumption
    1.29 kWh/24h
  • Annual Energy Consumption
    470 kWh/year
  • Input Power
    80 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    45 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    450 x 450 x 490 mm
  • External Dimension (WxDxH)
    570 x 570 x 885 mm
  • Packed Dimension (WxDxH)
    680 x 700 x 1010 mm
  • 40ft Container Load
    108 pcs
  • GTIN / EAN
    5708181730925
  • Product Group - Delivery services
    Group 1
48835 IC101SCEB content image

Downloads

Description

Spare parts

  • 2
    Item no. 10662Upper Glass With Frame
  • 3
    Lock With Keys
    Item no. 10718Lock With Keys
  • 4
    Inner Drain Plug
    Item no. 11553Inner Drain Plug
  • 5
    Item no. 10496Bottom Glass With Frame
  • 6
    Item no. 15772Ice Scraper
  • 7
    Plastic Strip For Alu Frame
    Item no. 11212Plastic Strip For Alu Frame
  • 8
    Evaporator Fan Blade 190/28°
    Item no. 13426Evaporator Fan Blade 190/28°
  • 9
    Item no. 34974Fan Motor Foot Sheet H=55mm
  • 10
    Thermostat K50B-S3564 Ranco
    Item no. 14000Thermostat K50B-S3564 Ranco
  • 11
    Thermometer Digital White
    Item no. 13793Thermometer Digital White
  • 13
    Item no. 34163LED Lighting
  • 14
    Item no. 14724Wire Basket 190 mm
  • 15
    Drain Plug Outer White
    Item no. 11465Drain Plug Outer White
  • 16
    Rear Grill
    Item no. 11219Rear Grill
  • 17
    Item no. 38818Dryer
  • 18
    Item no. 34165Plastic Cover
  • 26
    Wheel With Brake U-Mount
    Item no. 14674Wheel With Brake U-Mount
  • 27
    Wheel W/O Brake U-Mount
    Item no. 14663Wheel W/O Brake U-Mount
  • 28
    U-Shaped Lock For Wheels
    Item no. 14653U-Shaped Lock For Wheels
  • 29
    Rubber Cap For U-Lock
    Item no. 10734Rubber Cap For U-Lock
