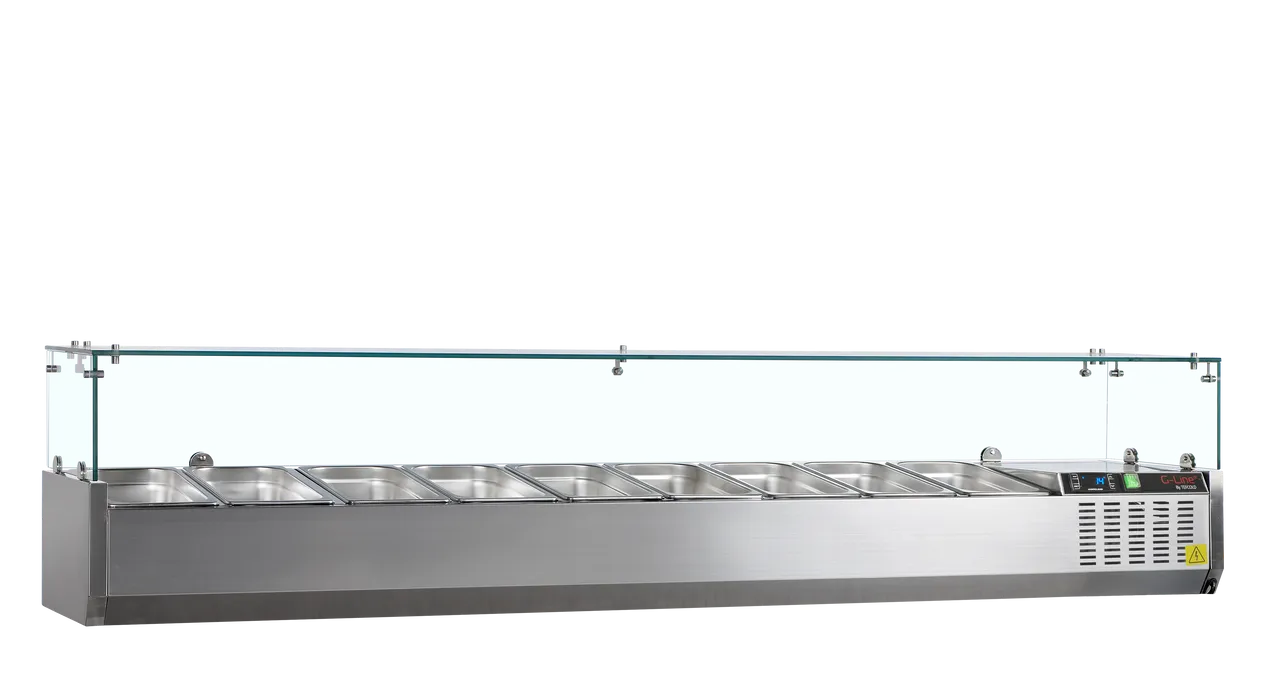

Gastronorm Topping Shelf

GVC33-200

Item no.: 30821

This price is available until 31st January 2025, when you place your order directly through our website only.

  • Fully automatic
  • Static cooling
  • Adjustable feet
  • Digital controller and temperature display
  • Accepts GN1/4 pan(s) (not supplied)
Energy arrow
Product Sheet
Check Delivery Options and Services

Technical specifications

Measures and Content

  • Temperature Range
    +2 to +10 °C
  • Climate Class
    4
  • Gross / Net Weight
    63 / 58 kg
  • Capacity GN Pans
    10 x GN1/4 pcs

Design and Material

  • Exterior Finish
    Stainless steel
  • Interior Finish
    Stainless steel

Cooling and Functions

  • Type of Defrost
    Manual
  • Refrigerant
    R600a
  • Thermometer

Power and Consumption

  • Max Ambient
    30°C at 55% RH
  • Energy Consumption
    4.32 kWh/24h
  • Annual Energy Consumption
    1577 kWh/year
  • Input Power
    112 W
  • Noise Level
    47 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    1645 x 245 x 155 mm
  • External Dimension (WxDxH)
    2000 x 335 x 435 mm
  • Packed Dimension (WxDxH)
    2080 x 380 x 310 mm
  • 40ft Container Load
    250 pcs
  • GTIN / EAN
    5708181365400
  • Product Group - Delivery services
    Group 2

Downloads

Spare parts

  • 1
    Feet M8
    Item no. 14579Feet M8
  • 2
    Clips Glass Cover
    Item no. 10499Clips Glass Cover
  • 4
    Side Glass
    Item no. 10621Side Glass
  • 5
    Item no. 35045Bushing
  • 6
    Item no. 35046Glass Fixed Bolt
  • 7
    Item no. 35047Glass Linked Clip
  • 8
    Item no. 35048Glass Clip Fixed Nut
  • 9
    Item no. 35063Top Glass
  • 10
    Item no. 35064Front Glass
  • 11
    Unit Room Cover For Thermostat
    Item no. 35025Unit Room Cover For Thermostat
  • 12
    Filter Drier 20 G
    Item no. 15722Filter Drier 20 G
  • 13
    Item no. 13237Defrost Water Coil
  • 14
    Condensor
    Item no. 14193Condensor
  • 15
    Plastic Cap
    Item no. 10068Plastic Cap
  • 16
    Item no. 35076Side Cover
  • 17
    Item no. 32629Plug
  • 20
    Cond./Evap. Fan Rah1238B
    Item no. 13318Cond./Evap. Fan Rah1238B
  • 21
    Item no. 11725Compressor HDL100A R600A
  • 23
    Main Switch
    Item no. 13754Main Switch
  • 24
    Item no. 14061Thermostat XR02CX 2 Probes
  • 26
    Divider For GN1/4 Pans 268x27 mm
    Item no. 14768Divider For GN1/4 Pans 268x27 mm
  • 27
    Divider For GN1/6 Pans 178x76 mm
    Item no. 14771Divider For GN1/6 Pans 178x76 mm
  • 28
    Filter 182 x 215 mm
    Item no. 10020Filter 182 x 215 mm
  • 29
    Item no. 35077Air Flow Window
  • 30
    Cover For Screw
    Item no. 10039Cover For Screw
  • 31
    Probe NTC Dixell/Carel 10 Kohm
    Item no. 13896Probe NTC Dixell/Carel 10 Kohm
