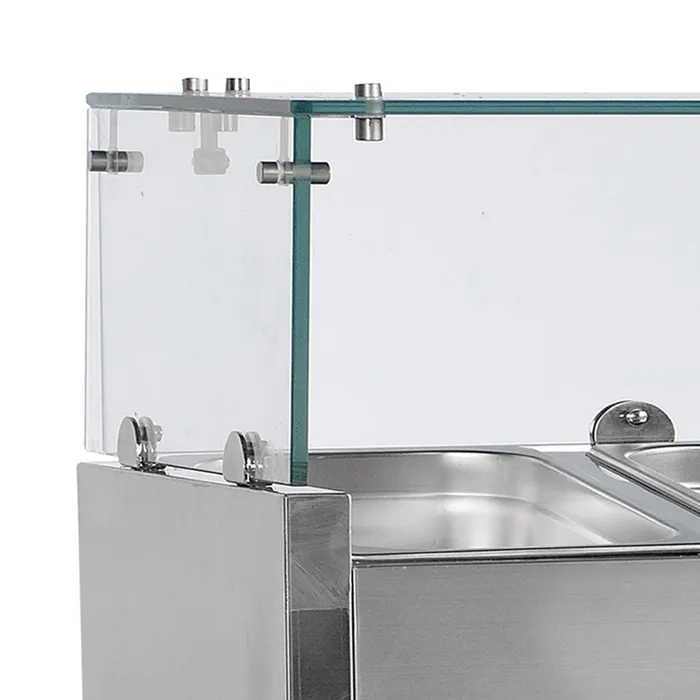

    Glass structure for protection of food
  • product-30827-detailimage2
    Accepts GN1/4 pan(s) (not supplied)
  • product-30827-primaryimagenoshadow
  • product-30827-detailimage1
  • product-30827-detailimage2

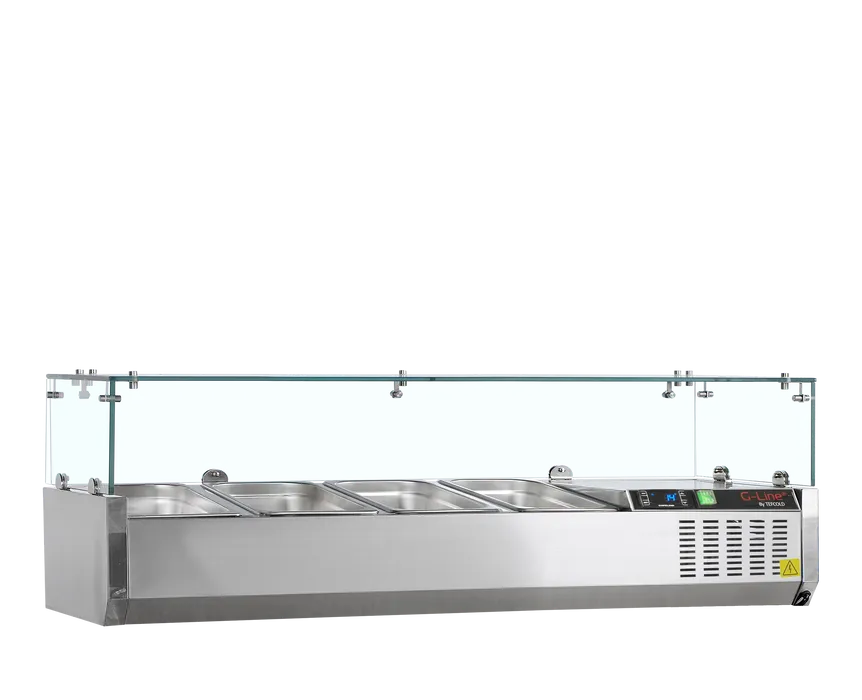

Gastronorm Topping Shelf

GVC33-120

Product.ItemNumber: 30827

  • Fully automatic
  • Static cooling
  • Adjustable feet
  • Digital controller and temperature display
  • Accepts GN1/4 pan(s) (not supplied)
Product.EnergyArrow
Product.Downloads.ProductSheet
ProductDetail.Shipping.Header

ProductDetail.TechnicalSpecificationHeader

Measures and Content

  • Temperature Range
    +2 to +8 °C
  • Climate Class
    4
  • Gross / Net Weight
    29 / 25 kg
  • Gross / Net Volume
    31 / 26 l
  • Capacity GN Pans
    5 x GN1/4 pcs

Design and Material

  • Feet / Legs
    Adjustable Feet
  • Exterior Finish
    SS201
  • Interior Finish
    SS201
  • Interior Light
    No

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Static
  • Type of Defrost
    Manual
  • Refrigerant
    R600a
  • Refrigerant Charge
    45 g
  • Thermometer

Power and Consumption

  • Max Ambient
    30°C at 55% RH
  • Energy Consumption
    2.64 kWh/24h
  • Annual Energy Consumption
    964 kWh/year
  • Power
    13 Amp
  • Input Power
    110 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    40 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    850 x 245 x 150 mm
  • External Dimension (WxDxH)
    1200 x 335 x 448 mm
  • Packed Dimension (WxDxH)
    1300 x 375 x 280 mm
  • 40ft Container Load
    324 pcs
  • GTIN / EAN
    5708181365349
  • Product Group - Delivery services
    Group 1
