Shelf risers and ticket strips
Digital controller
Multideck With Doors

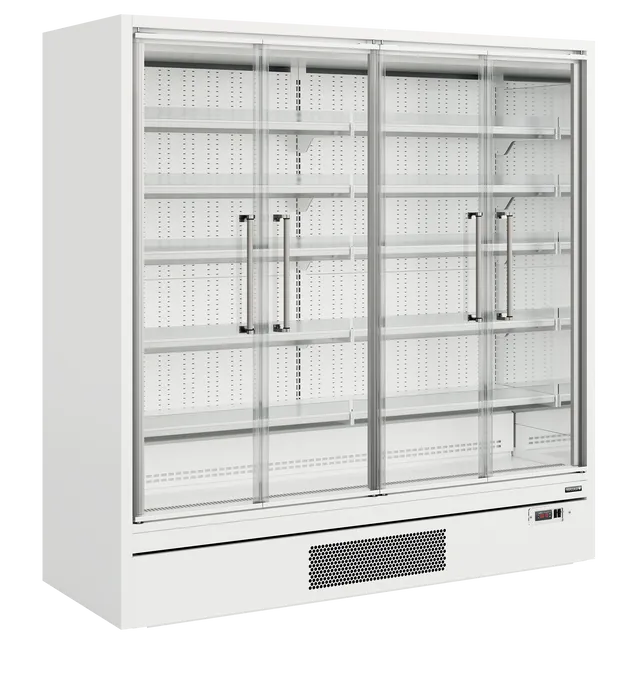

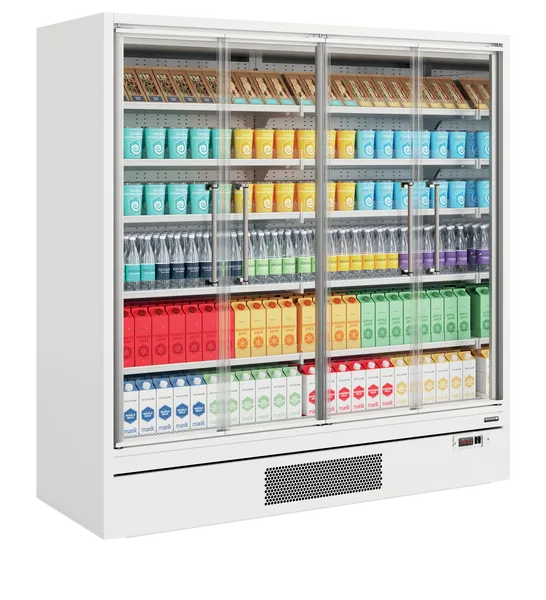

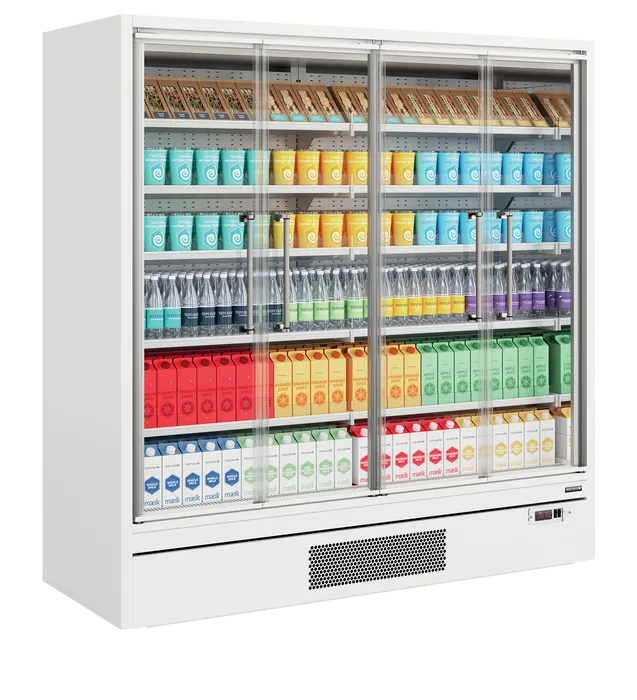

Galaxy+ GP20FGD White
Product.ItemNumber: 45309
Product.Brand: TEFCOLD
The web deal price is available until 31st May 2026, whilst stocks last, when you place your order directly through our website only.
- Fully automatic, fan assisted cooling
- Internal vertical & horizontal LED light
- Solid 40 mm endwalls with mirrored interior
- Frameless hinged double glazed self closing doors
- 5 Adjustable shelves, max weight 160kg/sq metre
- Shelves can be flat or angled to 7° or 14°
- EPOS Ticket strips & shelf risers
- Suitable for fresh meat
- Can be multiplexed with kit (POA)
- Door widths match on G14 & G26 & on G10 & G20
- Delivered without handles and rear stand-offs attached, will fit through 750mm door
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 141.00
- Remove & Dispose£ 162.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight470 / 439 kg
- Total Display Area2.87 m²
- Temperature Range-1 to +5 °C
- Climate Class3
- Gross / Net Volume2165 / 943 l
Design and Material
- Exterior FinishWhite RAL9003
- Interior FinishWhite RAL9003
- Door Number & Type4 hinged glass doors
- Max load on Shelves160 kg/m²
- Shelf ColorWhite
- Shelf Dimensions938x400mm
- Shelves Number & Type5 adjustable
- Feet / Legs6 adjustable feet
- Interior LightLED
Cooling and Functions
- Type of ControllerElectronic
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge150 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No1970645
- Max Ambient25°C at 60% RH
- Annual Energy Consumption1997 kWh/year
- Energy Consumption5.47 kWh/24h
- EEI13.5 %
- Power13 Amp
- Input Power829 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level55 dB(A)
Dimensions
- 40ft Container Load 12 pcs
- GTIN / EAN5708181720384
- Product Group - Delivery servicesGroup 4A
- External Dimension (WxDxH)1955 x 750 x 2040 mm
- Internal Dimension (WxDxH)1875 x 544 x 1562 mm
- Packed Dimension (WxDxH)2000 x 770 x 2320 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 001Product.ItemNumber 45023Panoramic end wall left d:740mm h:2005 mm White
- 001Product.ItemNumber 45024Panoramic end wall right d:740mm h:2005 mm White
- 002Product.ItemNumber 44854Panoramic end wall glass h:2005 mm
- 003
Product.ItemNumber 42199LED Tube T8 L=1200mm 20W - 003Product.ItemNumber 44855Canopy T8 led tube 1200 mm OSRAM red color
- 004Product.ItemNumber 45315Top back panel 1250mm H: 2005 White
- 005Product.ItemNumber 42341Shelf LED Bar 4000K 938mm
- 005Product.ItemNumber 42342Shelf LED Bar Red 938mm
- 006
Product.ItemNumber 43921Hook for Pin Bar - 007Product.ItemNumber 44867938 mm supporting bar for hook and hanging profile
- 008Product.ItemNumber 44865Hanging profile 400 mm
- 009
Product.ItemNumber 44868Shelf 400 mm plexi divider d:740 - 010Product.ItemNumber 44732Shelf White
- 011
Product.ItemNumber 45317Shelf bracket 400mm White - 012
Product.ItemNumber 44031Shelf Riser Plexi 938 - 013Product.ItemNumber 51401Plastic Shelf Ticket Strip Clip
- 014Product.ItemNumber 45318Bottom back panel 938 mm White
- 015Product.ItemNumber 45319Base deck for d:740 w:938 mm module White
- 016Product.ItemNumber 45320Air return grill 1875 mm module White
- 017Product.ItemNumber 42153Adjustable Feet
- 018Product.ItemNumber 45323Front panel for 1875 mm module White
- 019
Product.ItemNumber 45327Machinery front panel for 1875 mm module White - 020Product.ItemNumber 44912Base deck plexi divider 320 mm d:740
- 021Product.ItemNumber 44962Door bottom hinge left
- 021Product.ItemNumber 44963Door bottom hinge right
- 023Product.ItemNumber 44914Plexi glass cover for Bottom grill
- 024
Product.ItemNumber 44964Vertical Door LED 4000 K H:2005 Right/Left Black - 024Product.ItemNumber 44965Vertical door led light red color h:2005- each
- 025
Product.ItemNumber 45367Door Handle White - 027Product.ItemNumber 45019Blok end wall left d:740mm h:2005 mm White
- 027Product.ItemNumber 45020Blok end wall right d:740mm h:2005 mm White
- 029Product.ItemNumber 44966Top Hinge – Old Version
- 030
Product.ItemNumber 49571Door with transperant spacer h: 2005 Left 938 and 1875mm White - 030Product.ItemNumber 49573Door with transperant spacer h: 2005 Right 938 and 1875mm White
- 032Product.ItemNumber 45331Canopy Trim 1875mm White
- A1
Product.ItemNumber 449751875 module evaporator - A2Product.ItemNumber 45252Evap Fan
- A3Product.ItemNumber 44932Compressor Embraco NT6224U (with terminal box) module for 1875 mm
- A4Product.ItemNumber 42233Condenser Fan Motor Reversible
- A5
Product.ItemNumber 42220Condenser - A6Product.ItemNumber 44933Copper drier 50 gr
- A7Product.ItemNumber 44978Electrical connection box
- A8Product.ItemNumber 42215Water Tray Heater
- A9Product.ItemNumber 42212Sponge Cloth
- A10Product.ItemNumber 42260Digital Controller XR20CH
- A12Product.ItemNumber 42201Switch On/Off
- A13Product.ItemNumber 43210Capillary tubes
- A13Product.ItemNumber 44979Capillary for 1875 and 2500 module Ø1,2 mm L:152 cm
