Adjustable shelves
Digital controller
Multideck

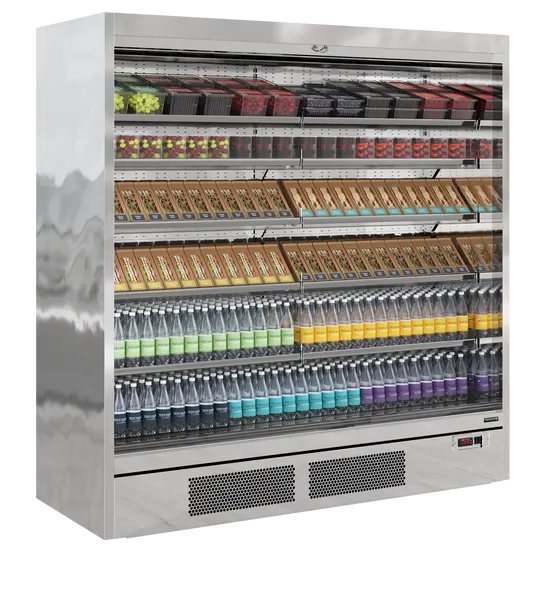

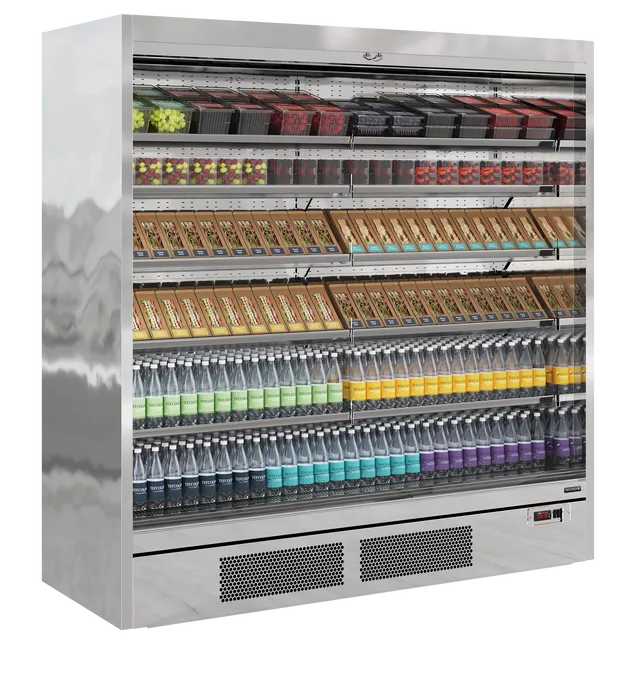

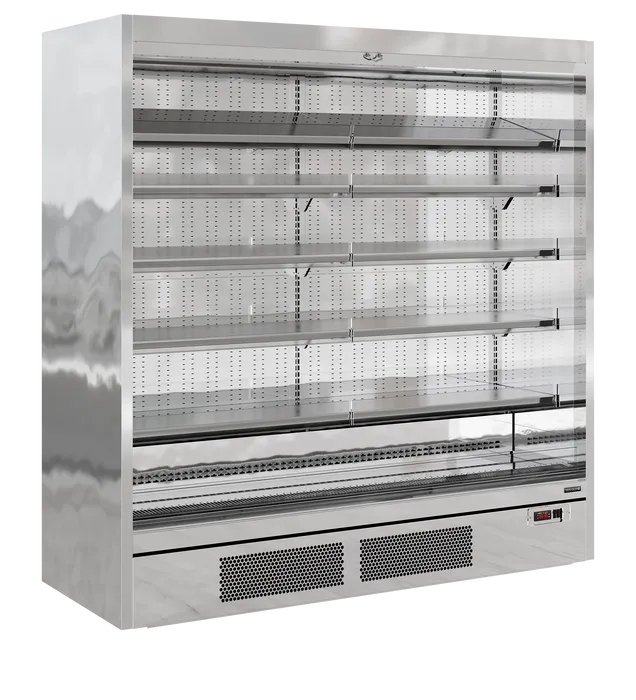

Galaxy+ GP20 SS
Product.ItemNumber: 46472
Product.Brand: TEFCOLD
- Fully automatic, fan assisted cooling
- Horizontal LED lighting
- Solid 40 mm endwalls with mirrored interior
- Soft closing nightblind
- 5 Adjustable shelves, max weight 160kg/sq metre
- Shelves can be flat or angled to 7° or 14°
- EPOS Ticket strips & shelf risers
- Suitable for fresh meat
- Can be multiplexed with kit (POA)
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 141.00
- Remove & Dispose£ 162.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight392 / 370 kg
- Total Display Area2.87 m²
- Temperature Range-1 to +5 °C
- Climate Class3
- Gross / Net Volume2165 / 943 l
Design and Material
- Exterior FinishMirror Stainless Steel
- Interior FinishMirror Stainless Steel
- Max load on Shelves160 kg/m²
- Shelf ColorStainless steel
- Shelf Dimensions938x400mm
- Shelves Number & Type5 adjustable
- Feet / Legs6 adjustable feet
- Interior LightLED
Cooling and Functions
- Type of ControllerElectronic
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge150 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No2056896
- Max Ambient25°C at 60% RH
- Annual Energy Consumption7928 kWh/year
- Energy Consumption21.72 kWh/24h
- EEI48.8 %
- Power16 Amp
- Input Power829 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level55 dB(A)
Dimensions
- 40ft Container Load 12 pcs
- GTIN / EAN5708181726249
- Product Group - Delivery servicesGroup 4A
- External Dimension (WxDxH)1955 x 740 x 2040 mm
- Internal Dimension (WxDxH)1875 x 544 x 1562 mm
- Packed Dimension (WxDxH)2000 x 770 x 2320 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 002Product.ItemNumber 44854Panoramic end wall glass h:2005 mm
- 003
Product.ItemNumber 41959Night BLind - 004
Product.ItemNumber 42198LED Tube T8 L=1500mm 25W - 005Product.ItemNumber 46989Top back panel 938mm H: 2005 SS
- 006Product.ItemNumber 42338Shelf LED Kit SS 938mm
- 006Product.ItemNumber 42341Shelf LED Bar 4000K 938mm
- 006Product.ItemNumber 42342Shelf LED Bar Red 938mm
- 007Product.ItemNumber 44865Hanging profile 400 mm
- 008
Product.ItemNumber 43921Hook for Pin Bar - 010
Product.ItemNumber 44868Shelf 400 mm plexi divider d:740 - 011Product.ItemNumber 42345Shelf 400mm d:740 w:938 SS
- 014Product.ItemNumber 51401Plastic Shelf Ticket Strip Clip
- 019Product.ItemNumber 42153Adjustable Feet
- 022Product.ItemNumber 44912Base deck plexi divider 320 mm d:740
- 023Product.ItemNumber 42373Front Plexi 8x100x1870mm
- 025Product.ItemNumber 44914Plexi glass cover for Bottom grill
- 026Product.ItemNumber 46912Blok end wall right d:740mm h:2005 mm SS
- 026Product.ItemNumber 46962Blok end wall left d:740mm h:2005 mm SS
- A2Product.ItemNumber 45252Evap Fan
- A3Product.ItemNumber 44932Compressor Embraco NT6224U (with terminal box) module for 1875 mm
- A4Product.ItemNumber 42233Condenser Fan Motor Reversible
- A5Product.ItemNumber 43871Condenser, Microchannel (R290)
- A6Product.ItemNumber 44933Copper drier 50 gr
- A7Product.ItemNumber 43998Junction Box 75X75X36.2MM
- A8
Product.ItemNumber 44936Condensate water tray 1875mm module - A9Product.ItemNumber 42212Sponge Cloth
- A10
Product.ItemNumber 44937Over flow heated condenser tray - A11Product.ItemNumber 44938Over flow heater
- A12Product.ItemNumber 44939Digital controller XR70CH
- A13Product.ItemNumber 44941Light switch
- A15Product.ItemNumber 42228Capillary (1,2X1800mm)
