Strong handle
Vertical internal light

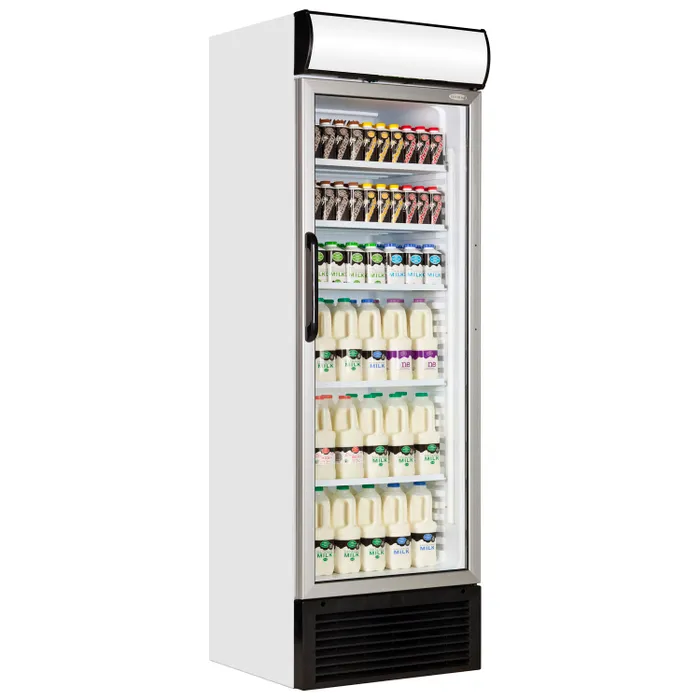

Glass Door Merchandiser
FSC1450
Product.ItemNumber: 22533
Product.Brand: TEFCOLD
- Fully automatic
- Fan assisted cooling
- Lock
- Adjustable shelves
- Adjustable feet
- LED interior light with switch
- Thermometer
- LED Light canopy with switch
- Replaceable door gasket
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight107 / 102 kg
- Bottles 330 ml360 pcs
- Bottles 500 ml PET360 pcs
- Cans 330 ml480 pcs
- Cans 500 ml270 pcs
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Volume438 / 374 l
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Door Number & Type1 hinged glass door
- Max load on Shelves196 kg/m²
- Shelf ColorWhite
- Shelf Dimensions574 x 405 mm
- Shelves Number & Type6 wire shelves white
- Canopy TypeD-Shape
- Feet / Legs2 adjustable feet
- Castors2 rollers
- Interior LightLED
- Lock
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingFan assisted
- Type of DefrostAutomatic / Off Cycle
- RefrigerantR600a
- Refrigerant Charge80 g
- Thermometer
Power and Consumption
- Energy ClassE
- EPREL No2389261
- Max Ambient30°C at 55% RH
- Annual Energy Consumption942 kWh/year
- Energy Consumption2.58 kWh/24h
- EEI51.1 %
- Power13 Amp
- Input Power295 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- 40ft Container Load 51 pcs
- GTIN / EAN5708181002725
- Product Group - Delivery servicesGroup 2
- External Dimension (WxDxH)680 x 655 x 2090 mm
- Internal Dimension (WxDxH)585 x 495 x 1515 mm
- Packed Dimension (WxDxH)690 x 755 x 2200 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 01Product.ItemNumber 10345Top Plate For Canopy
- 02
Product.ItemNumber 12961Top Hinge Base Left/Right - 03
Product.ItemNumber 12863Hinge Bush - 04
Product.ItemNumber 10204Canopy - 05
Product.ItemNumber 15631LED Power Supply 12V 18W - 06
Product.ItemNumber 15650LED Strip 580 mm 7000K/7LM - 07
Product.ItemNumber 10299Cover For Canopy - 08
Product.ItemNumber 10318Left/Right Side Cover Canopy - 09
Product.ItemNumber 13790Thermometer Analog Black 1.2M - 10
Product.ItemNumber 15649LED Strip 465 mm 7000K - 11Product.ItemNumber 15517Horizontal LED Cover 630 mm
- 12
Product.ItemNumber 15510End Cap LED Light - 13
Product.ItemNumber 14482Roll Bond Evaporator - 14
Product.ItemNumber 13644Green Control Lamp - 15
Product.ItemNumber 13737Light Switch - 16
Product.ItemNumber 13587Internal Fan 240 mm - 17
Product.ItemNumber 13393Cover For Internal Fan - 18
Product.ItemNumber 14002Thermostat K50-L3420 (500 mm) - 19
Product.ItemNumber 14023Thermostat Knob FS - 20
Product.ItemNumber 11122Grill Cover For Compr. Comp. - 21
Product.ItemNumber 12978Top Hinge Pin - 22
Product.ItemNumber 14614Pin For Big Roller - 23
Product.ItemNumber 14608Big Roller - 24
Product.ItemNumber 14570Adjustable Foot - 26
Product.ItemNumber 12732Bottom Hinge - 27
Product.ItemNumber 15229Wire Shelf For Print 580x410mm - 28
Product.ItemNumber 15721Filter Drier 20 G - 30
Product.ItemNumber 11470Drip Tray - 34
Product.ItemNumber 13519Fan Motor - 36
Product.ItemNumber 14084Condenser - 37
Product.ItemNumber 10872Bottom Panel Hexagonal Holes - 38
Product.ItemNumber 12700Handle Curved Black - 43
Product.ItemNumber 12020Door Gasket - 45
Product.ItemNumber 11935Door Aluminium Frame - 46
Product.ItemNumber 10715Lock With Keys - 47
Product.ItemNumber 12808Door Hinge Bracket
