Strong handle
Lock

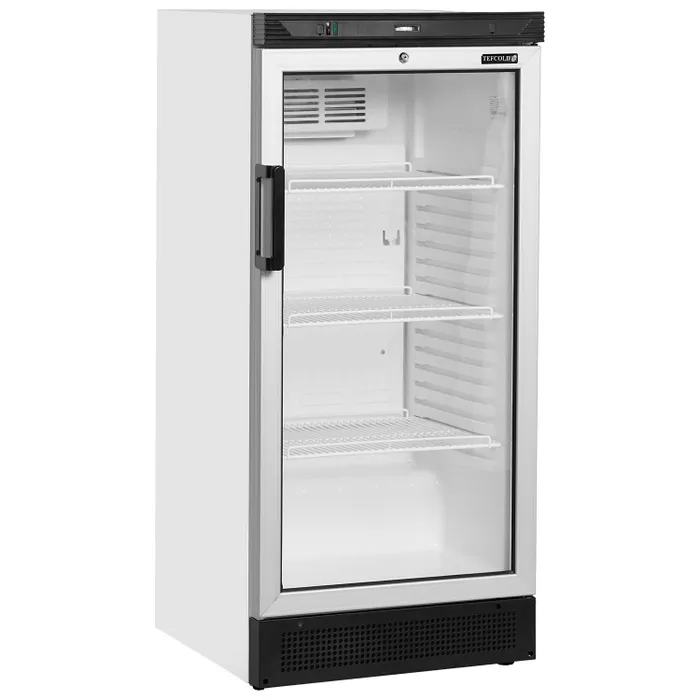

Glass Door Merchandiser
FS1220
Product.ItemNumber:22512
Product.Brand:TEFCOLD
- Fully automatic
- Fan assisted cooling
- Lock
- Adjustable shelves
- Adjustable feet
- LED interior light with switch
- Thermometer
- Replaceable door gasket
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight67 / 62 kg
- Temperature Range+2 to +10 °C
- Gross / Net Volume215 / 190 l
- Bottles 330 ml133 pcs
- Bottles 500 ml PET133 pcs
- Cans 330 ml301 pcs
- Cans 500 ml175 pcs
- Climate Class4
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Door Number & Type1 hinged glass door
- Shelves Number & Type3 wire shelves white
- Max load on Shelves196 kg/m²
- Shelf Dimensions498 x 405 mm
- Feet / Legs2 adjustable feet
- Shelf ColorWhite
- Castors2 rollers
- Interior LightLED
- Lock
Cooling and Functions
- Type of ControllerMechanical
- Type of DefrostAutomatic / Off Cycle
- RefrigerantR600a
- Refrigerant Charge50 g
- Type of CoolingFan assisted
- Thermometer
Power and Consumption
- Max Ambient+25°C, 60% RH
- Input Power229 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
- Energy ClassE
- EPREL No574591
- Annual Energy Consumption694 kWh/year
- Energy Consumption1.9 kWh/24h
- EEI52 %
- Power13 Amp
Dimensions
- 40ft Container Load 54 pcs
- GTIN / EAN5708181355920
- Product Group - Delivery servicesGroup 2
- External Dimension (WxDxH)595 x 640 x 1315 mm
- Internal Dimension (WxDxH)470 x 440 x 1027 mm
- Packed Dimension (WxDxH)680 x 710 x 1410 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 02
Product.ItemNumber 12961Top Hinge Base Left/Right - 03
Product.ItemNumber 12911Pin For Hinge - 04
Product.ItemNumber 13813Control Panel 2015 Black - 05
Product.ItemNumber 10948Cover For Control Panel 2015 B - 06
Product.ItemNumber 13824Control Panel Cover For Screw - 08
Product.ItemNumber 13790Thermometer Analog Black 1.2M - 09
Product.ItemNumber 13737Light Switch - 10
Product.ItemNumber 13644Green Control Lamp - 12
Product.ItemNumber 15510End Cap LED Light - 13
Product.ItemNumber 15597LED Light Base - 14
Product.ItemNumber 15592LED Light 410 mm - 15
Product.ItemNumber 15600LED Light Cover - 16
Product.ItemNumber 13531Fan Motor Int/Ext - 17
Product.ItemNumber 13390Cover For Internal Fan - 18
Product.ItemNumber 13998Thermostat K50B-S16176 R600 - 19
Product.ItemNumber 14048Thermostat Scale Label White - 20
Product.ItemNumber 14023Thermostat Knob FS - 21
Product.ItemNumber 15151Standard Shelf 498 x 405 mm - 22
Product.ItemNumber 14491Roll Bond Evaporator White - 24
Product.ItemNumber 12762Bottom Hinge No Wire - 26
Product.ItemNumber 12863Hinge Bush - 27
Product.ItemNumber 10859Bottom Panel Hexagonal - 28
Product.ItemNumber 11243Cover For Screw - 31
Product.ItemNumber 10721Lock With Keys - 34
Product.ItemNumber 12018Door Gasket - 36
Product.ItemNumber 11933Door Alu Frame - 37
Product.ItemNumber 12808Door Hinge Bracket - 38
Product.ItemNumber 12665Handle - 40
Product.ItemNumber 11442Drain Pipe - 41
Product.ItemNumber 15721Filter Drier 20 G - 46Product.ItemNumber 11705Compressor EMT45CDP R600A
- 48
Product.ItemNumber 14614Pin For Big Roller - 49
Product.ItemNumber 14608Big Roller - 51
Product.ItemNumber 11470Drip Tray - 52
Product.ItemNumber 11123Grill Cover For Fan Motor - 53
Product.ItemNumber 11121Grill Cover For Comp. Compart. - 55
Product.ItemNumber 14570Adjustable Foot - 56Product.ItemNumber 13632Cover For Wiring
- 57
Product.ItemNumber 14199Holder For Condenser 2015 - 58
Product.ItemNumber 14081Condenser - 61
Product.ItemNumber 15631LED Power Supply 12V 18W - 62
Product.ItemNumber 15347Cover For Ballast
