Island installation
Shelf as accessory

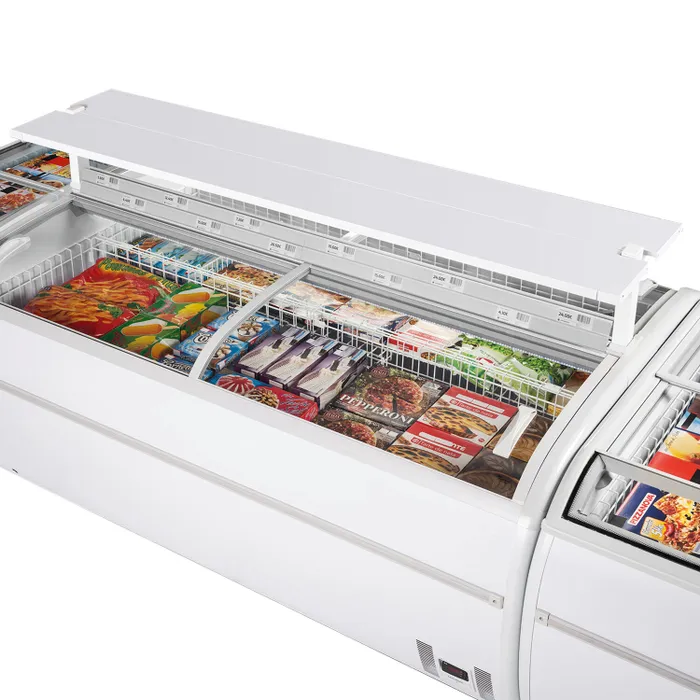

High Vision Freezer
DUPLA 2.2DE White
Product.ItemNumber: 19280
Product.Brand: TEFCOLD
- Curved sliding lids
- Static cooling
- Automatic defrost
- LED interior light with switch
- Digital controller and temperature display
- Fan assisted self cleaning condenser
- Bumper bars
- Low energy consumption
- High internal volume with small footprint
- Shelving and ticket strips are optional extra - POA
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 50.00
- Remove & Dispose£ 162.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight251 / 198 kg
- Temperature Range-24 to -18 °C
- Gross / Net Volume1697 / 1255 l
- Total Display Area2.65 m²
- Climate Class3
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Feet / Legs4 adjustable legs
- Interior LightLED
- Lid Number & Type2 curved sliding temp. glass lids
Cooling and Functions
- Type of ControllerElectronic
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge2 x 85 g
- Type of CoolingStatic
- Thermometer
Power and Consumption
- Max Ambient25°C at 60% RH
- Input Power522 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level48 dB(A)
- Energy ClassC
- Annual Energy Consumption3358 kWh/year
- Energy Consumption9.2 kWh/24h
- EEI26 %
- Power13 Amp
Dimensions
- 40ft Container Load 14 pcs
- GTIN / EAN5708181606930
- Product Group - Delivery servicesGroup 4
- External Dimension (WxDxH)2150 x 1465 x 930 mm
- Internal Dimension (WxDxH)2000 x 1175 x 700 mm
- Packed Dimension (WxDxH)2240 x 1550 x 1050 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 02
Product.ItemNumber 11548External Drain Plug - 03
Product.ItemNumber 13779Box Control Panel - 04
Product.ItemNumber 10936Control Panel - 05Product.ItemNumber 20449Green Light Switch
- 06
Product.ItemNumber 13778Box - 07
Product.ItemNumber 13780Brand Plate - 08
Product.ItemNumber 13863Electronic Controller XR77CX - 10
Product.ItemNumber 14591Leveling Foot 50 mm - 11Product.ItemNumber 10177Frontal Bumper Bar Profile
- 12
Product.ItemNumber 10175Flexible Rubber Bumper - 13
Product.ItemNumber 13693Protective Terminal - 14
Product.ItemNumber 33982Dupla 2.2D Divider. - 16
Product.ItemNumber 10469Plastic Cover - 18
Product.ItemNumber 15606LED Light Strip 190 cm - 20
Product.ItemNumber 13137Lower Sliding Glass Lids - 21
Product.ItemNumber 13196Upper Sliding Glass Lids - 26
Product.ItemNumber 14749Defrost Wire Grid - 28
Product.ItemNumber 14206Right Condenser - 30
Product.ItemNumber 13522Fan Motor - 31
Product.ItemNumber 14201Left Condenser - 32
Product.ItemNumber 15746Hot Gas Valve - 33
Product.ItemNumber 15749Hot Gas Valve Coil 230V-50Hz - 34
Product.ItemNumber 15696Filter - 35
Product.ItemNumber 15656LED Transformer - 36
Product.ItemNumber 11262Small Plastic Grid 108x266mm - 37
Product.ItemNumber 10796Big Plastic Grid 425x266mm - 38
Product.ItemNumber 10486Transparent Plastic Cover - 39Product.ItemNumber 11563Side Water Drain Rail
- 40Product.ItemNumber 11550Frontal Water Drain Rail
- 41
Product.ItemNumber 11576Water Drain Corner - 42
Product.ItemNumber 11577Water Flow Drain Corner - 43
Product.ItemNumber 13260Evap. Resist. Transformer - 44
Product.ItemNumber 10117Transformer Holder - 45
Product.ItemNumber 13292Resievaporation Heather - 46
Product.ItemNumber 11600Water Tank Cover - 47
Product.ItemNumber 13283Overflow Protection - 48
Product.ItemNumber 11599Water Tank - 49
Product.ItemNumber 11579Water Hose
