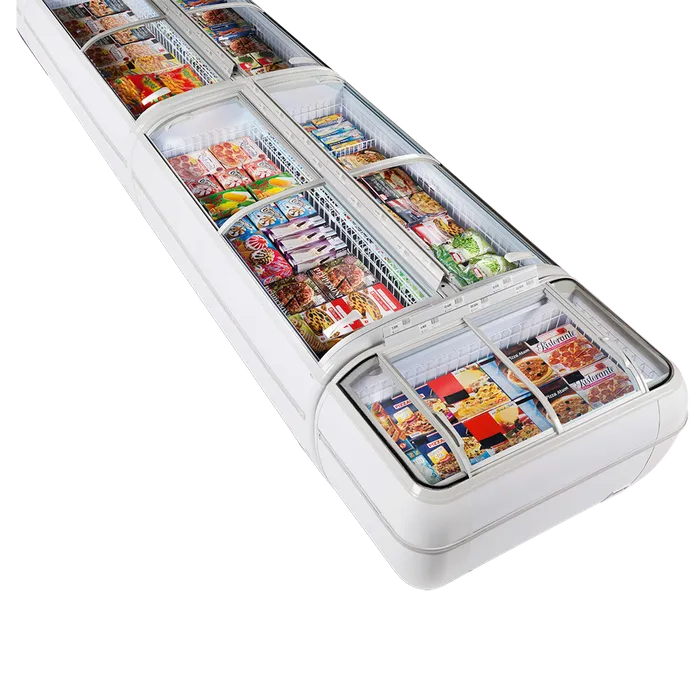

Island installation

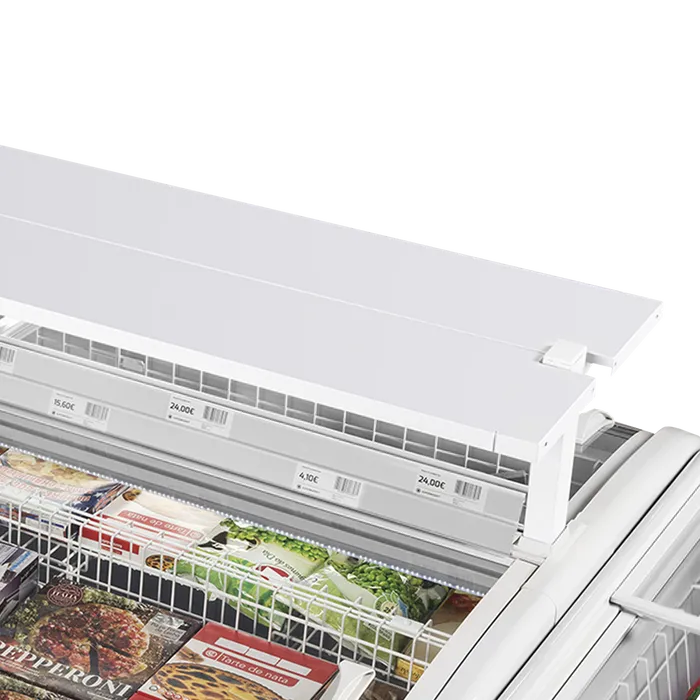

Shelf as accessory
High Vision Freezer
DUPLA 2.2DE HC White
Product.ItemNumber:30830
Product.Brand:TEFCOLD
- Curved sliding lids
- Static cooling
- Automatic defrost
- LED interior light with switch
- Digital controller and temperature display
- Fan assisted self cleaning condenser
- Defrost drain
- Bumper bars
- Low energy consumption
- High internal volume with small footprint
- Shelving and ticket strips are optional extra - POA
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight125 / 85 kg
- Total Display Area0.65 m²
- Temperature Range-24 to -18 °C
- Climate Class3
- Gross / Net Volume425 / 334 l
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Feet / Legs4 adjustable legs
- Interior LightLED
- Lid Number & Type2 curved sliding temp. glass lids
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingStatic
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge80 g
- Thermometer
Power and Consumption
- Energy ClassC
- Max Ambient25°C at 60% RH
- Annual Energy Consumption1496 kWh/year
- Energy Consumption4.1 kWh/24h
- EEI34 %
- Power13 Amp
- Input Power267 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level46 dB(A)
Dimensions
- 40ft Container Load 14 pcs
- GTIN / EAN5708181991678
- Product Group - Delivery servicesGroup 2
- External Dimension (WxDxH)1470 x 812 x 915 mm
- Internal Dimension (WxDxH)1190 x 605 x 620 mm
- Packed Dimension (WxDxH)1530 x 1000 x 1050 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 02
Product.ItemNumber 11548External Drain Plug - 03
Product.ItemNumber 13779Box Control Panel - 04
Product.ItemNumber 10936Control Panel - 05Product.ItemNumber 20449Green Light Switch
- 06
Product.ItemNumber 13778Box - 07
Product.ItemNumber 13780Brand Plate - 08
Product.ItemNumber 13863Electronic Controller XR77CX - 09
Product.ItemNumber 10486Transparent Plastic Cover - 10
Product.ItemNumber 14591Leveling Foot 50 mm - 12
Product.ItemNumber 10158Bumper Bar Profile - 13
Product.ItemNumber 10174Flexible Rubber Bumper - 14
Product.ItemNumber 13693Protective Terminal - 15Product.ItemNumber 10747Auto Defrost Grids
- 16
Product.ItemNumber 10581Left Side Glass - 17
Product.ItemNumber 10598Right Side Glass - 18
Product.ItemNumber 10584Left+Right Glass Frame Holder - 20
Product.ItemNumber 20406Large Divider - 21
Product.ItemNumber 14825Small Wire Divider - 22
Product.ItemNumber 15657Left+Right Side End LED Bar - 24
Product.ItemNumber 15529LED Bar Holder - 25
Product.ItemNumber 15607LED Light Strip 80 cm - 26
Product.ItemNumber 15539LED Cover - 27
Product.ItemNumber 13173Upper Curved Sliding Glass Lid - 28
Product.ItemNumber 13133Lower Curved Sliding Glass Lid - 33
Product.ItemNumber 13522Fan Motor - 34
Product.ItemNumber 14206Right Condenser - 35
Product.ItemNumber 15696Filter - 36
Product.ItemNumber 15747Hot Gas Valve - 37
Product.ItemNumber 15748Hot Gas Valve Coil 220V - 38
Product.ItemNumber 15656LED Transformer - 39
Product.ItemNumber 11207Plastic Grid - 40Product.ItemNumber 11563Side Water Drain Rail
- 41Product.ItemNumber 11550Frontal Water Drain Rail
- 42
Product.ItemNumber 11576Water Drain Corner - 43
Product.ItemNumber 11577Water Flow Drain Corner - 44
Product.ItemNumber 13261Evaporation Heater - 45
Product.ItemNumber 13260Evap. Resist. Transformer - 46
Product.ItemNumber 10117Transformer Holder - 47
Product.ItemNumber 11600Water Tank Cover - 48
Product.ItemNumber 13283Overflow Protection - 49
Product.ItemNumber 11599Water Tank - 50
Product.ItemNumber 11579Water Hose
