Adjustable wire shelves
Electronic thermostat

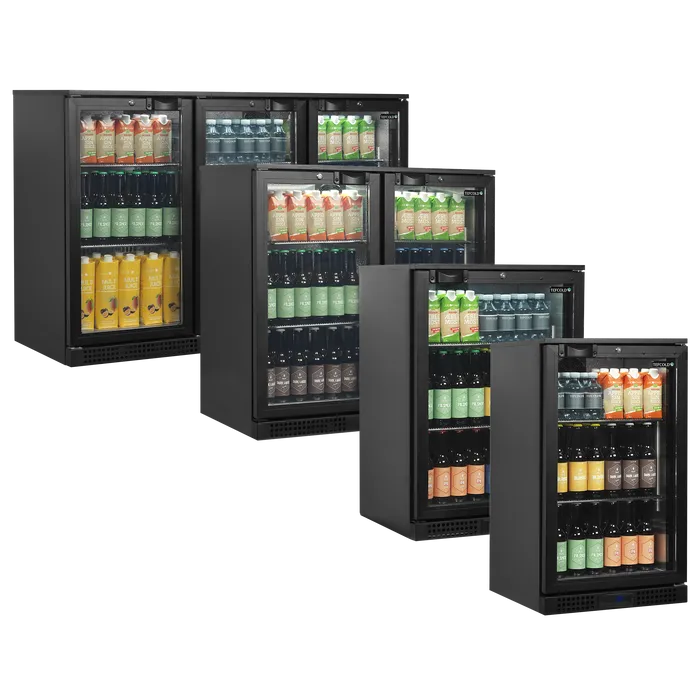

Back Bar Cooler
BA6H
Item no.: 49824
Brand: TEFCOLD
The web deal price is available until 11th January 2026, whilst stocks last, when you place your order directly through our website only.
- Fully automatic
- Fan assisted cooling
- Lock
- Adjustable shelves
- Adjustable feet
- LED interior light with switch
- Self-closing door
- Replaceable door gasket
- Next day delivery available on product
- Unpack & Position£ 37.00
- Remove & Dispose£ 67.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Weight45 / 40 kg
- Gross / Net Volume105 / 92 l
- Total Display Area0.29 m²
- Bottles 330 ml70 pcs
- Bottles 500 ml PET70 pcs
- Cans 330 ml113 pcs
- Cans 500 ml96 pcs
Design and Material
- Feet / Legs4 adjustable feet
- Exterior FinishBlack
- Interior FinishStucco aluminium
- Interior LightLED
- Lock
- Door Number & Type1 hinged glass door
- Shelf ColorChrome
- Shelf Dimensions395x350 mm
- Shelves Number & Type2 wire shelves chrome
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge45 g
- Thermometer
Power and Consumption
- Energy ClassA
- EPREL No1431504
- Max Ambient30°C at 55% RH
- Energy Consumption0.85 kWh/24h
- Annual Energy Consumption310 kWh/year
- Power13 Amp
- Input Power95 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level44 dB(A)
Dimensions
- Internal Dimension (WxDxH)410 x 418 x 720 mm
- External Dimension (WxDxH)500 x 520 x 870 mm
- Packed Dimension (WxDxH)585 x 575 x 940 mm mm
- 40ft Container Load 160 pcs
- GTIN / EAN5708181733490
- Product Group - Delivery servicesGroup 1
Downloads
Description
Spare parts
- 02
Item no. 45263Heat Exchanger - 03
Item no. 14285Evaporator - 04Item no. 47484Fan Box Cover
- 05Item no. 47476Fan
- 06Item no. 47477Fan Cover
- 08
Item no. 13561Finger Guard - 09
Item no. 45266LED Light - 10
Item no. 12995Top/Down Hinge Axle Sleeve - 11
Item no. 15447Light Cover - 12
Item no. 15356End Piece For Lamp Cover - 13
Item no. 10684Lock - 14
Item no. 10673Key - 15
Item no. 12956Top Hinge - 16Item no. 49196Glass Door
- 17
Item no. 12682Handle - 18
Item no. 13024Washer For Bottom Hinge - 19
Item no. 10063Nylon Washer - 20
Item no. 12750Bottom Hinge - 21
Item no. 12602Gasket - 22
Item no. 15057Shelf 395x350 mm - 23Item no. 47478Evaporator Cover
- 24
Item no. 15084Shelf Clip - 25
Item no. 45269Thermostat Box - 26
Item no. 42057Thermostat DT-01 - 27
Item no. 13748Light Switch - 29
Item no. 45271Bottom Panel - 30Item no. 47480Rail For Shelves
- 35
Item no. 10059Nut - 36
Item no. 14571Adjustment Feet - 39
Item no. 14169Condenser Air Conductor - 41
Item no. 14134Condenser - 42
Item no. 13726Wire Clamp - 43
Item no. 45272Compressor - 45
Item no. 10048Dry Filter Bracket - 46
Item no. 15711Filter Drier - 49
Item no. 11493Drip Tray - 50Item no. 47482Back Grill
- 51Item no. 47483Power Supply
- 53Item no. 13718Transformer Bracket
- 54
Item no. 13728Wire Holder
