Door holder for loading of the cabinet
Electronic thermostat

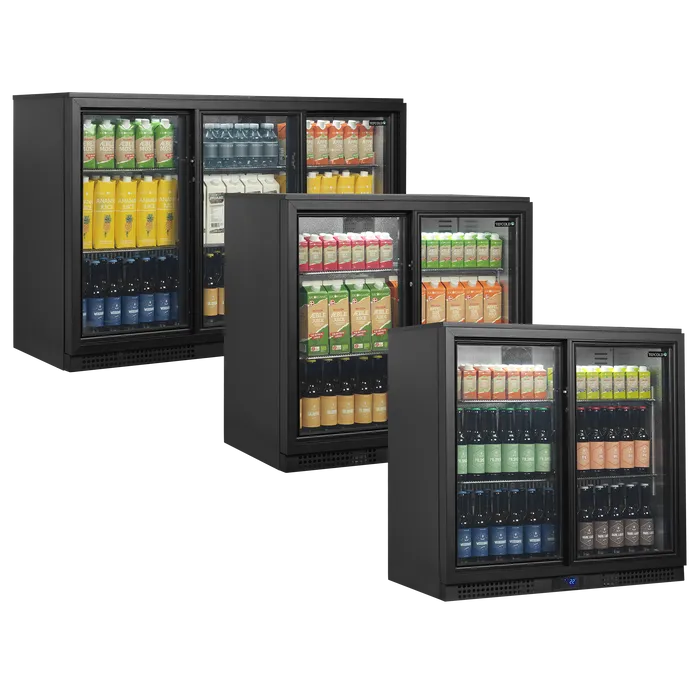

Backbar Cooler
BA31S-3
Product.ItemNumber: 49829
Product.Brand: TEFCOLD
The web deal price is available until 31st May 2026, whilst stocks last, when you place your order directly through our website only.
- EU Energy Class B
- Approx. 59% more energy efficient than previous BA-range
- Double glazed tempered glass
- Energy saving variable speed compressor
- Self-closing sliding glass doors
- Ventilated cooling for fast pull-down and even temperature
- Easy access electronic thermostat
- Adjustable shelves (split level)
- LED interior light
- Lock
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight101 / 94 kg
- Bottles 330 ml218 pcs
- Bottles 500 ml PET218 pcs
- Cans 330 ml380 pcs
- Cans 500 ml266 pcs
- Total Display Area0.84 m²
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Volume311 / 288 l
Design and Material
- Exterior FinishBlack
- Interior FinishStucco aluminium
- Door Number & Type3 sliding glass doors
- Shelf ColorChrome
- Shelf Dimensions400x318 / 432x318 mm
- Shelves Number & Type6 wire shelves chrome
- Feet / Legs4 adjustable feet
- Interior LightLED
- Lock
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge90 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No1431568
- Max Ambient30°C at 55% RH
- Annual Energy Consumption635 kWh/year
- Energy Consumption1.74 kWh/24h
- EEI12 %
- Input Power125 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level44 dB(A)
Dimensions
- 40ft Container Load 64 pcs
- GTIN / EAN5708181733544
- Product Group - Delivery servicesGroup 2
- External Dimension (WxDxH)1350 x 515 x 900 mm
- Internal Dimension (WxDxH)1265 x 418 x 734 mm
- Packed Dimension (WxDxH)1435 x 575 x 970 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 02
Product.ItemNumber 45280Heat Exchanger - 03
Product.ItemNumber 14291Evaporator - 05Product.ItemNumber 47493Fan Cover
- 07
Product.ItemNumber 13411Evaporator Fan 12 VDC - 07
Product.ItemNumber 45294LED Light - 09
Product.ItemNumber 13561Finger Guard - 10
Product.ItemNumber 15593LED Light 445 mm - 10Product.ItemNumber 49208Door Frame
- 11Product.ItemNumber 45375Complete Side Wheel
- 12
Product.ItemNumber 15416Lamp Cover - 13
Product.ItemNumber 15356End Piece For Lamp Cover - 14
Product.ItemNumber 12168Door Spring Left/Right - 15Product.ItemNumber 49209Inner Glass Door Right
- 17
Product.ItemNumber 12227Fixation Of Spring (Top) - 18Product.ItemNumber 49205Key
- 20Product.ItemNumber 12169Door Spring Middle
- 21Product.ItemNumber 49210Outer Glass Door
- 22
Product.ItemNumber 12182Door Stop Top - 23Product.ItemNumber 49204Fixation Of Spring
- 24Product.ItemNumber 49211Glass Door Left
- 25
Product.ItemNumber 12197Door Wheel - 26
Product.ItemNumber 10713Lock With Keys - 27Product.ItemNumber 14962Middle Shelf Bracket
- 28
Product.ItemNumber 12184Door Stopper Bottom - 31Product.ItemNumber 47513Rail For Shelves
- 32Product.ItemNumber 49203Evaporator Cover
- 33Product.ItemNumber 47510Middle Shelf Bracket
- 34
Product.ItemNumber 45269Thermostat Box - 35Product.ItemNumber 45270DT-01 Circuit Board
- 37
Product.ItemNumber 13748Light Switch - 38
Product.ItemNumber 45299Bottom Panel - 39
Product.ItemNumber 15125Shelf Side 400x315 mm - 40
Product.ItemNumber 15103Shelf Middle 430x315 mm - 41
Product.ItemNumber 14994Rail For Shelves - 42
Product.ItemNumber 15084Shelf Clip - 43
Product.ItemNumber 45287Condenser Fan Bracket - 44Product.ItemNumber 45288Condenser Fan
- 46
Product.ItemNumber 45300Condenser - 47
Product.ItemNumber 42060NTC Probe for Thermostat DT-01 - 51
Product.ItemNumber 45290Compressor Donper VFL070CY1H - 52Product.ItemNumber 45301Grill
- 53
Product.ItemNumber 14571Adjustment Feet - 54Product.ItemNumber 47483Power Supply
- 57Product.ItemNumber 47484Fan Box Cover
- 61Product.ItemNumber 13484Fan Blade 200 mm For CA03
- 63
Product.ItemNumber 13726Wire Clamp - 65
Product.ItemNumber 10048Dry Filter Bracket - 66
Product.ItemNumber 15710Filter Drier - 68
Product.ItemNumber 11496Drip Tray - 73
Product.ItemNumber 13728Wire Holder
