Adjustable wire shelves
Electronic thermostat

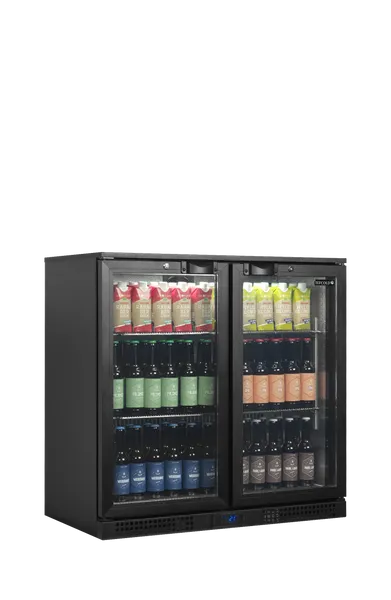

Back Bar Cooler
BA21H
Item no.: 46181
Brand: TEFCOLD
The web deal price is available until 11th January 2026, whilst stocks last, when you place your order directly through our website only.
- EU Energy Class A
- Approx. 59% more energy efficient than previous BA-range
- Double glazed tempered glass
- Reversible glass door
- Ventilated cooling for fast pull-down and even temperature
- Easy access electronic thermostat
- Adjustable shelves
- LED interior light
- Lock
- Next day delivery available on product
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Weight70 / 64 kg
- Gross / Net Volume196 / 188 l
- Cans 330 ml276 pcs
- Cans 500 ml168 pcs
- Bottles 330 ml143 pcs
- Bottles 500 ml PET143 pcs
- Total Display Area0.52 m²
Design and Material
- Feet / Legs4 adjustable feet
- Exterior FinishBlack
- Interior FinishStucco aluminium
- Interior LightLED
- Lock
- Door Number & Type2 hinged glass doors
- Shelves Number & Type4 wire shelves chrome
- Shelf ColorChrome
- Shelf Dimensions395x328 mm
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge70 g
- Thermometer
Power and Consumption
- Energy ClassA
- EPREL No1431559
- Max Ambient30°C at 55% RH
- Energy Consumption1.08 kWh/24h
- Annual Energy Consumption394 kWh/year
- Power13 Amp
- Input Power115 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level44 dB(A)
Dimensions
- Internal Dimension (WxDxH)810 x 418 x 734 mm
- External Dimension (WxDxH)900 x 520 x 900 mm
- Packed Dimension (WxDxH)985 x 575 x 970 mm mm
- 40ft Container Load 96 pcs
- GTIN / EAN5708181739836
- Product Group - Delivery servicesGroup 2
Downloads
Description
Spare parts
- 02
Item no. 45280Heat Exchanger - 03
Item no. 14289Evaporator - 04Item no. 47484Fan Box Cover
- 06
Item no. 13411Evaporator Fan 12 VDC - 06Item no. 47487Fan Cover
- 08
Item no. 13561Finger Guard - 10
Item no. 15593LED Light 445 mm - 12
Item no. 15413Lamp Cover - 13
Item no. 15356End Piece For Lamp Cover - 14
Item no. 10684Lock - 15
Item no. 10673Key - 16
Item no. 12956Top Hinge - 17
Item no. 12995Top/Down Hinge Axle Sleeve - 18
Item no. 12682Handle - 19Item no. 47508Glass Door Right
- 20Item no. 47509Glass Door Left
- 21
Item no. 10063Nylon Washer - 22
Item no. 12858Hinge Axis - 23
Item no. 12748Bottom Hinge - 24Item no. 47510Middle Shelf Bracket
- 25Item no. 47511Evaporator Cover
- 26Item no. 47512Rail For Shelves Long
- 27Item no. 47513Rail For Shelves
- 28Item no. 14962Middle Shelf Bracket
- 29
Item no. 45269Thermostat Box - 30
Item no. 12571Enclose Bar (Gasket) - 31
Item no. 15056Shelf 395x330 mm - 32
Item no. 13748Light Switch - 33
Item no. 45286Bottom Panel - 34
Item no. 15084Shelf Clip - 37Item no. 45270Thermostat
- 38
Item no. 42060NTC Probe for Thermostat DT-01 - 40
Item no. 45287Condenser Fan Bracket - 41Item no. 45288Condenser Fan
- 44
Item no. 10059Nut - 45
Item no. 14571Adjustment Feet - 47
Item no. 45290Compressor Donper VFL070CY1H - 49
Item no. 45292Grill - 50Item no. 47483Power Supply
- 51Item no. 13484Fan Blade 200 mm For CA03
- 52
Item no. 14139Condenser - 53
Item no. 13726Wire Clamp - 54
Item no. 10048Dry Filter Bracket - 55
Item no. 15711Filter Drier - 57
Item no. 11494Drip Tray - 60
Item no. 12006Door Frame Heater - 63
Item no. 13728Wire Holder
